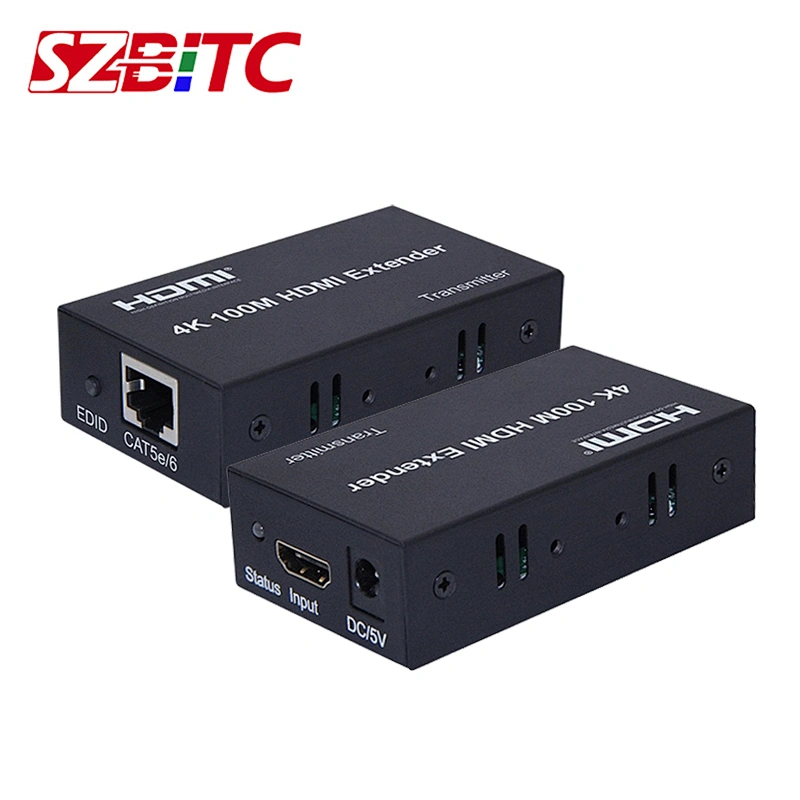

INTRODUCTION
The Extender uses single cat5e or cat6(recommended) cables instead of INPUT cable to transmit high definition signal up to 100 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
FEATURES
1: Support 4k@30hz input.
2:100M long distance transmission：
3: Low power consumption, low temperature and high safety.

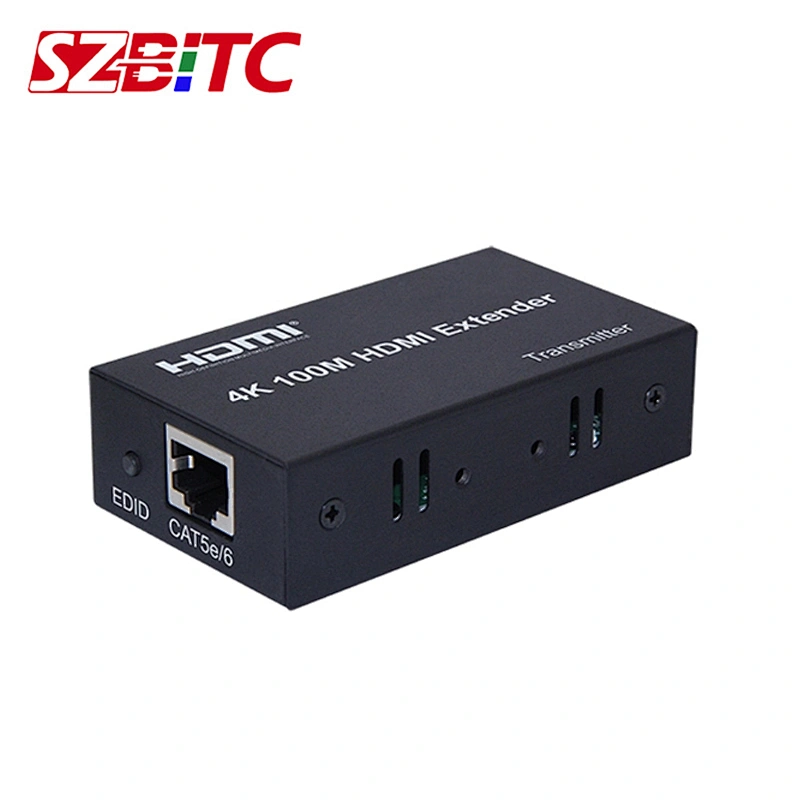

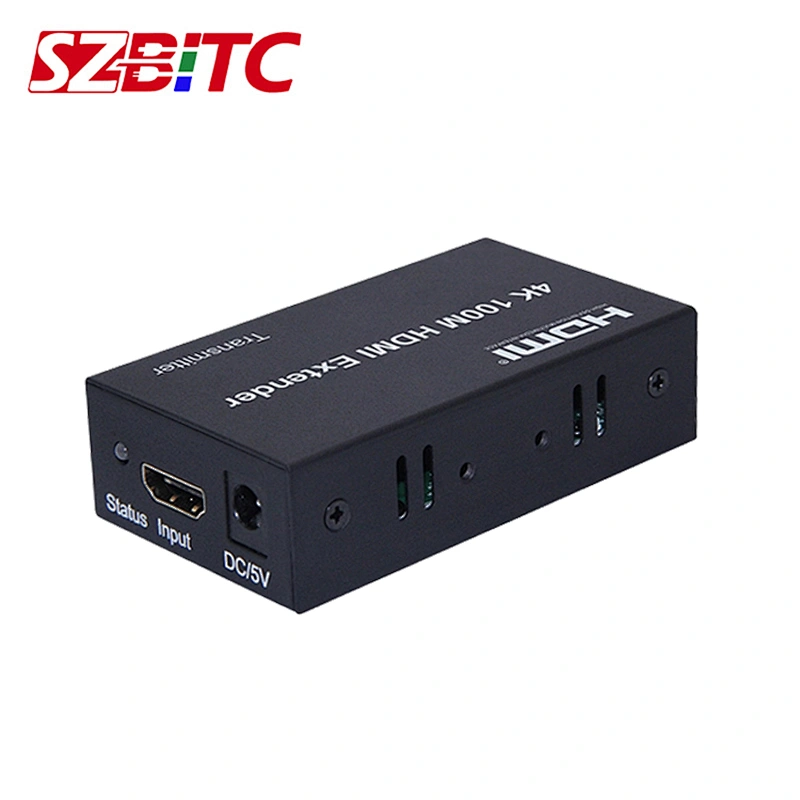

4. TX Extender
5. RX ExtenderSpecifications:
6. Length of CAT5e/CAT6 cable between Rx and TX Up to 100 meters
7. Input 4K/1080p/720p/576p/576i/480p/480i
8. Output 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
9. Max bandwidth 340MHz
10. Max baud rate 3.4x3Gbps
11. Input video signal 0.5~1.5Volts p-p
12. Output DDC signal 5Volts p-p (TTL)
13. Input cable distance ≤10m AWG26 HDMI standard cable
14. Output cable distance ≤10m AWG26 HDMI standard cable
15. TX Max working current 350mA
16. RX Max working current 200mA
17. Power adapter format Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
18. Operating Temperature range (-15 to +55℃)
19. Operating Humidity range 5 to 90%RH (No Condensation)
20. Dimension (L x W x H) 81x47x22 (mm)
21. TX Weight 101g
22.RX Weight 101g

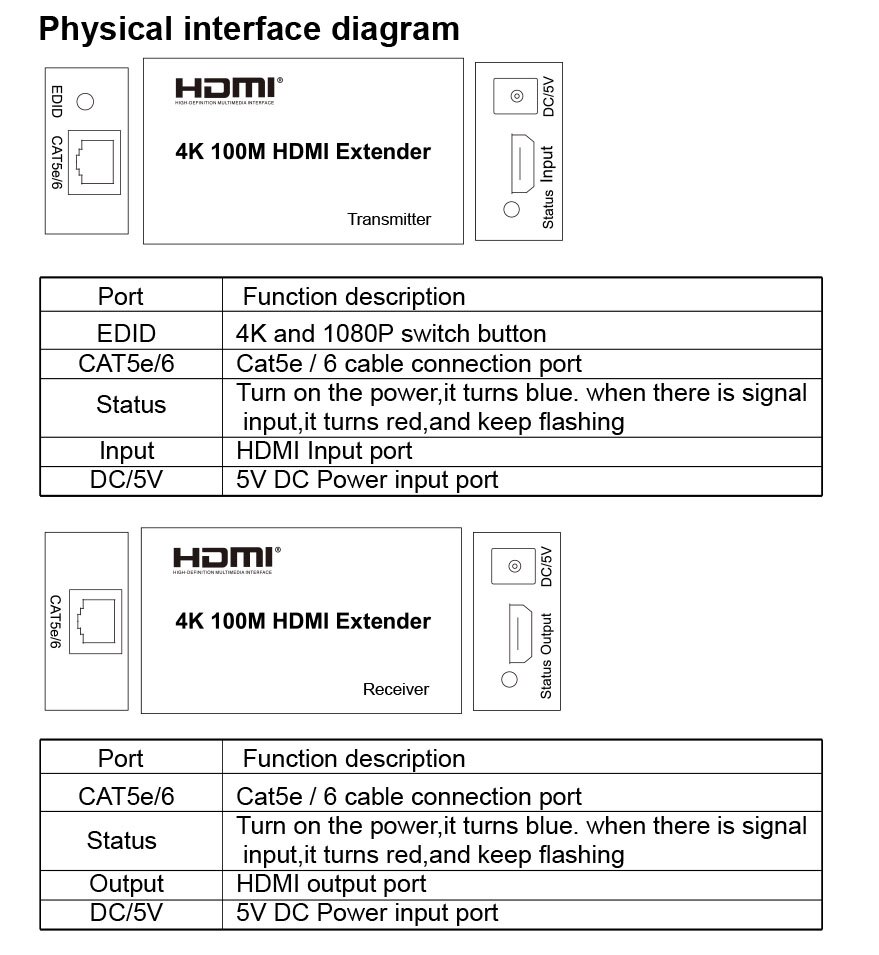

Operating and Connecting：

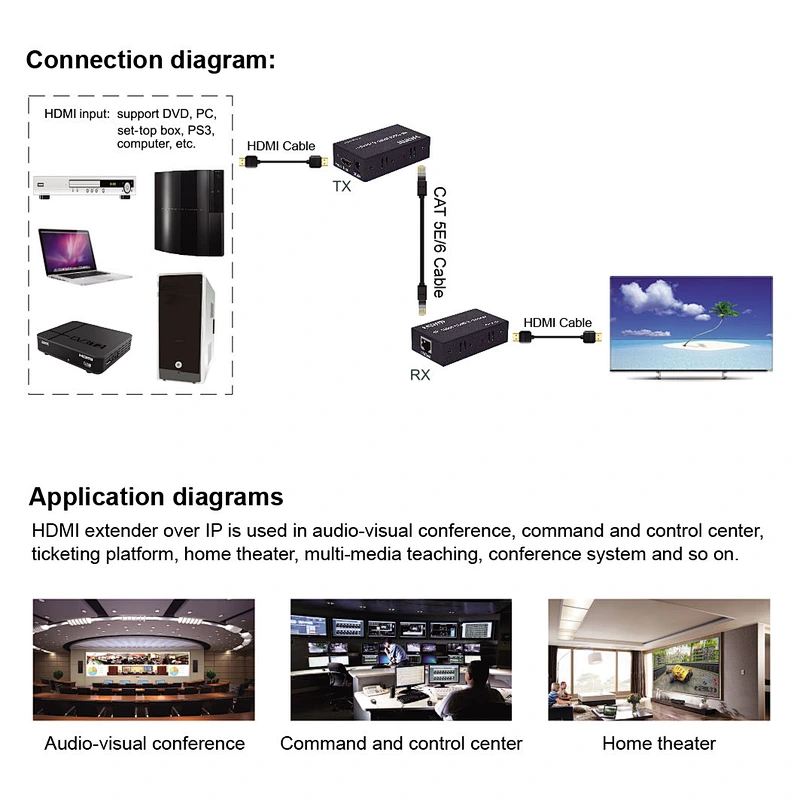

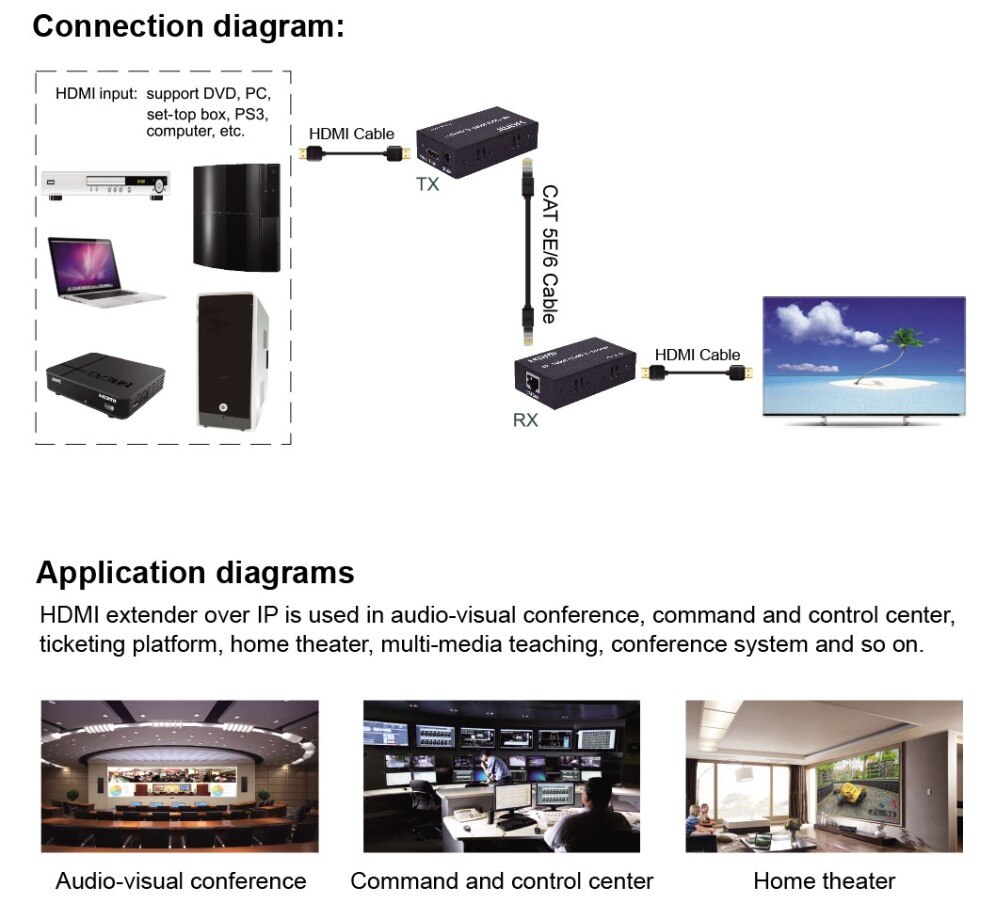

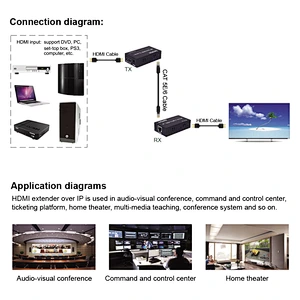

1.Connect one cable between source device and TX Extender, the max cable distance is 10 meters
2.Connect one cable between display device and RX Extender, the max cable distance is 10 meters
3.Connect single cat-5e or cat-6(recommended) cables between.TX and RX Extender, the max cable distance is 100 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light.TX LED indicator light: When there is no signal input, it turns blue;When there is signal input, it turns red,and keep flashing.
RX LED indicator light: When there is no signal input, it turns blue;When there is signal input, it turns red,and keep flashing.
6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is the default EDID when the power is on).
The Package includes:
1. TX Extender x 1pcs
RX Extender x 1 pcs
2. DC 5V Power adapter x 2pcs
3. User Manual
