Introduction:
The Extender uses single a Cat-5E or Cat-6(recommended) cable instead of input to transmit high definition signal up to 60 meters, The Extender is designed to supply for long distance transmission with high definition signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features:
1.Support 4K UHD Signal
2.Support 3D

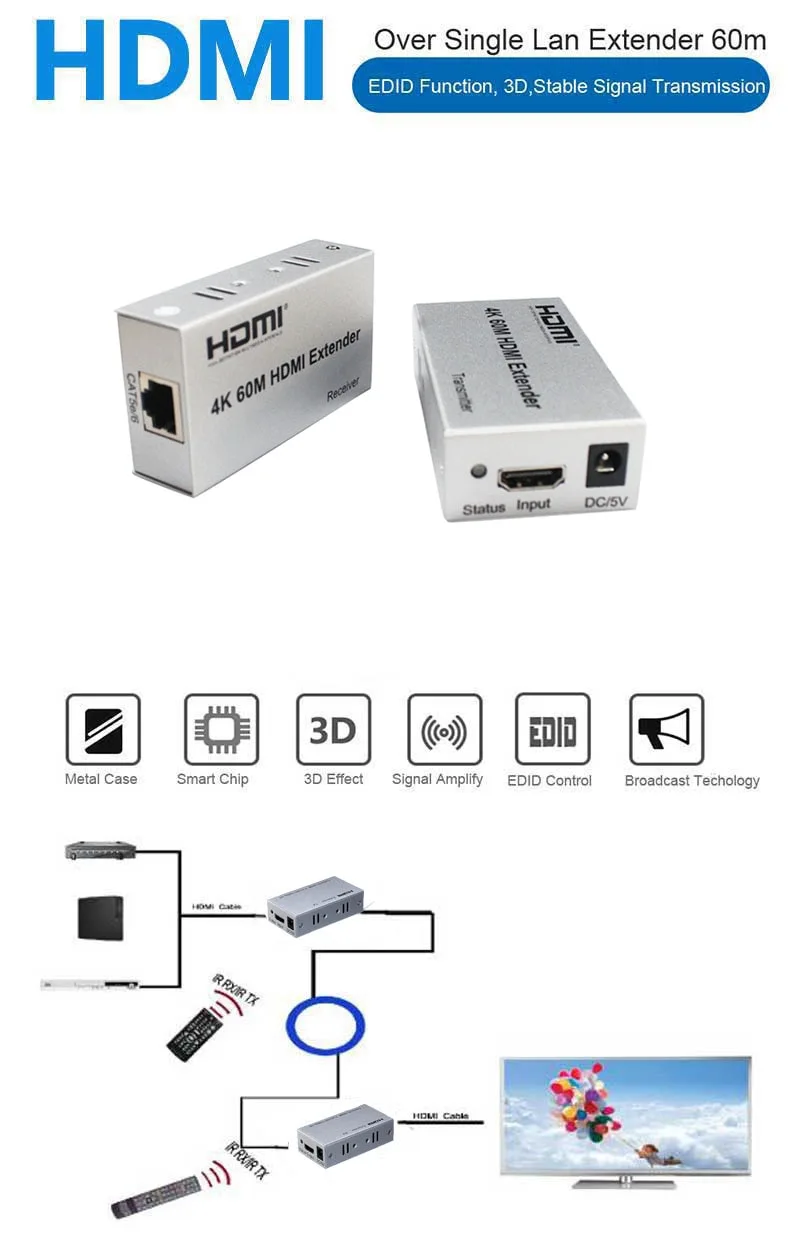

3.Supports Bi-directional IR control
4.Support highest video resolution 1080p/60Hz,4K/30Hz
5.Support 1.5Gbps data rate and tmds clock up to 148.5MHz
6.Support 8 bit deep color
7.Input up to 10 metres, output up to 15 metres

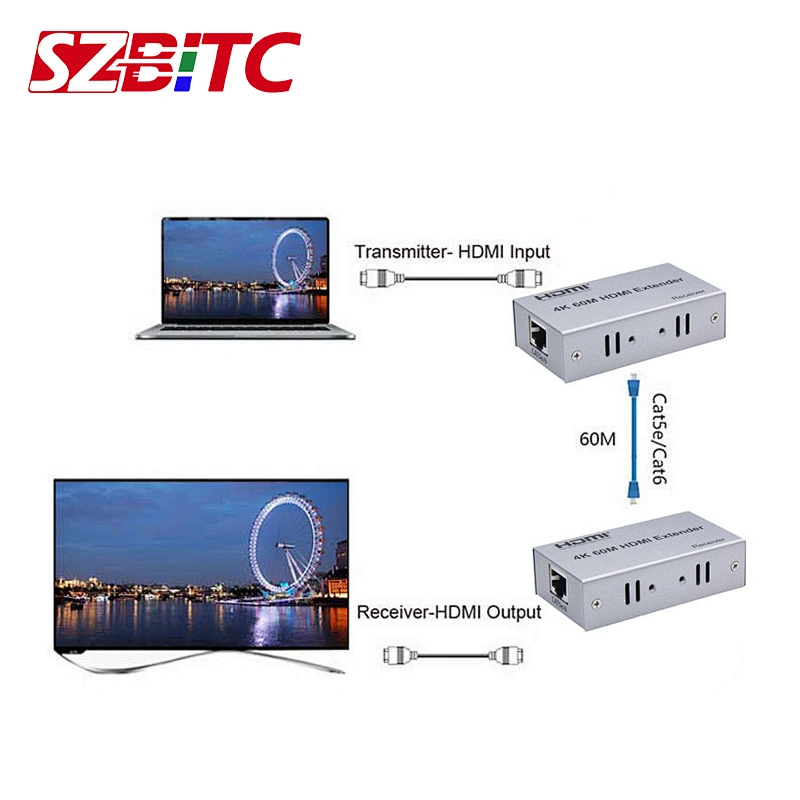

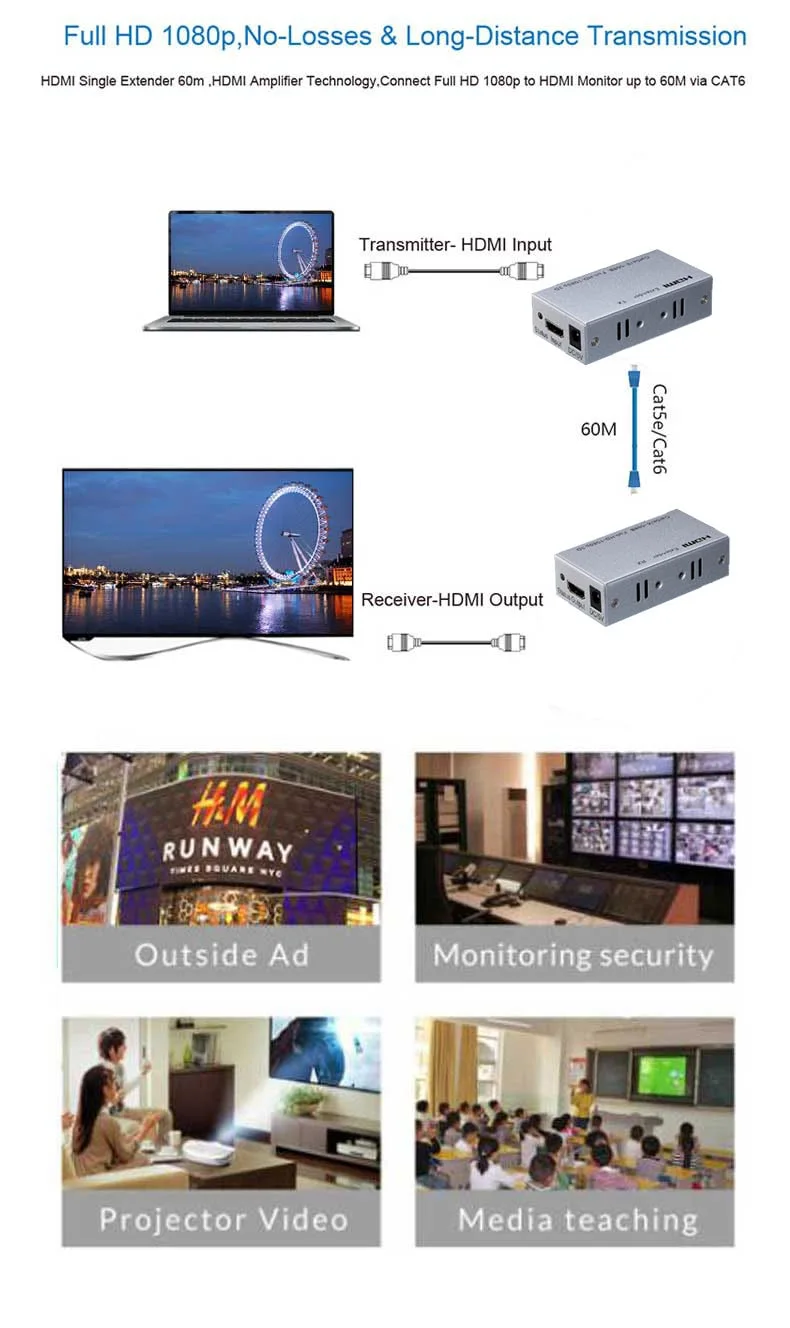

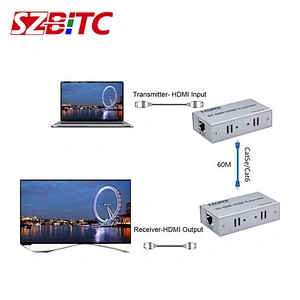

8.Signal transmission:By using single cat-5e/cat-6(recommended) cable instead of INPUT, it can extend the distance up to 60 meters between TX and RX.
9.No loss of quality
10.Install in minutes
11.Need DC5V/1A power supply
SPECIFICATIONS:
Length of CAT-6/CAT-5E cable between RX and TX................Up to 60 meters
HDMI Input................................................................................24/50/60fs/4k/1080p/1080i/720p/576p/576i/480p/480i
Support audio.helliphellip...........................................................DTS/Dolby/DSD
HDMI Output..............................................................................24/50/60fs/4k/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth............................................................................148.5MHz
Max baud rate...............................................................................1.5 Gbps
Input video signal ........................................................................ 0.5~1.5Volts p-p
Output DDC signal h..................................................................... 5Volts p-p (TT1L)
Input cable distance.............................................................le10m AWG26 HDMI standard cable
Output cable distance.......................................................... le15m AWG26 HDMI standard cable
TX Max working current.................................................................510mA
RX Max working current.................................................................100mA
Power adapter format........................................................................Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A
Operating Temperature range............................................................. (-15 to +55℃)
Operating Humidity range...................................................................5 to 90%RH (No Condensation)
Dimension (L x W x H) ......................................................................81x45x18 (mm)
TX Weight..............................................................................................100g
RX Weight...............................................................................................120g
The Package includes:
1. TX Extender x 1pcs
RX Extender x 1 pcs
2. DC 5V Power adapter x 2pcs
3, Bi-directional IR cable x 4pair
4. User Manual
