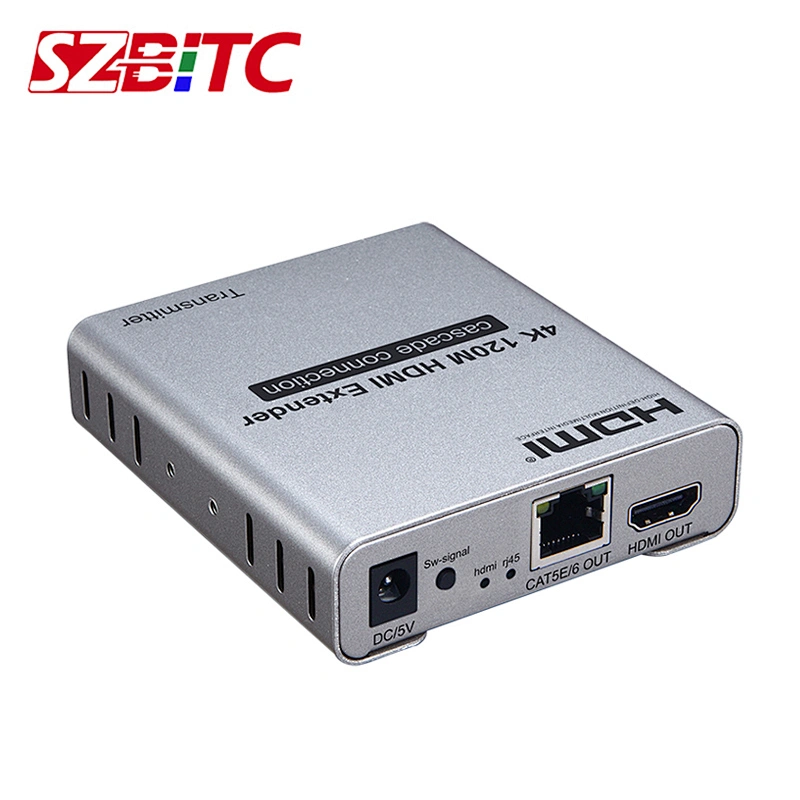

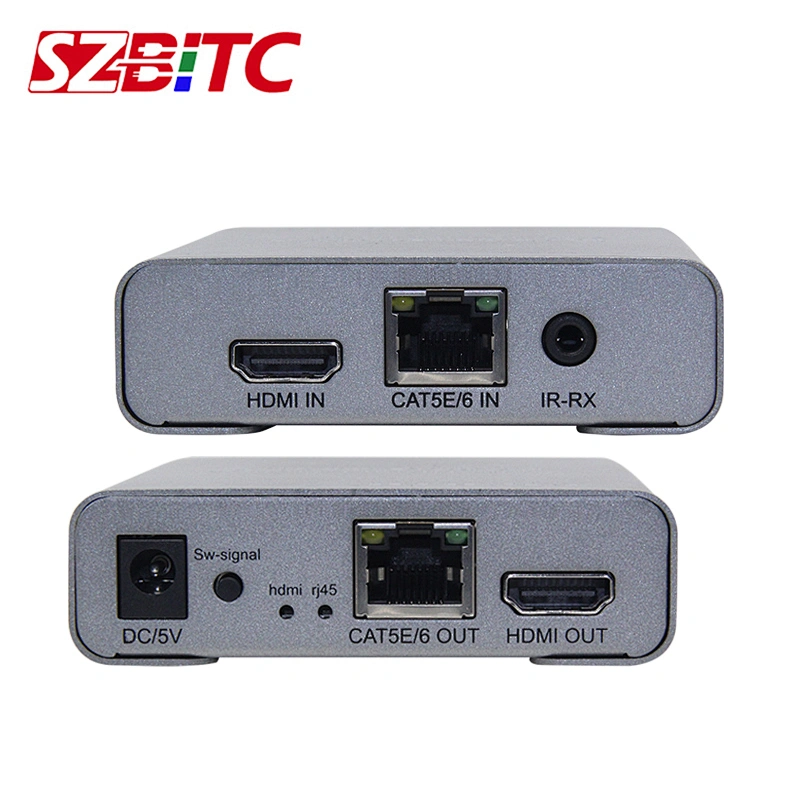

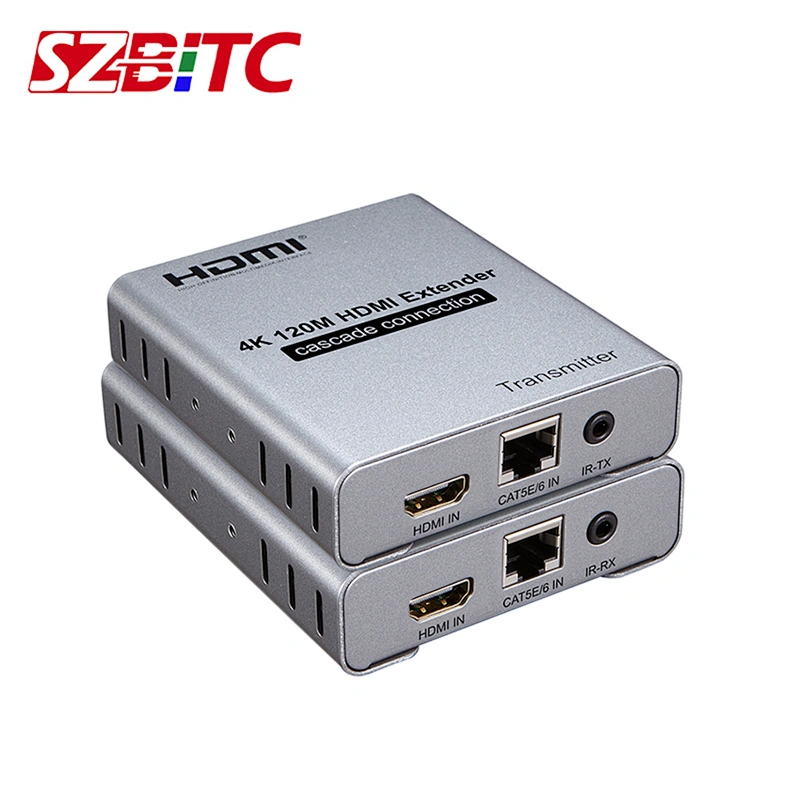

Introduction:
The 4K 120M extender uses one single cat-5E or cat-6(recommended) cable instead of INPUT cable, you can extend the1080P signal to 120 meters or 4K@60Hz to 60 meters. The purpose of the extender is to achieves long-distance signal transmission with low-cost wires.
Fearures:

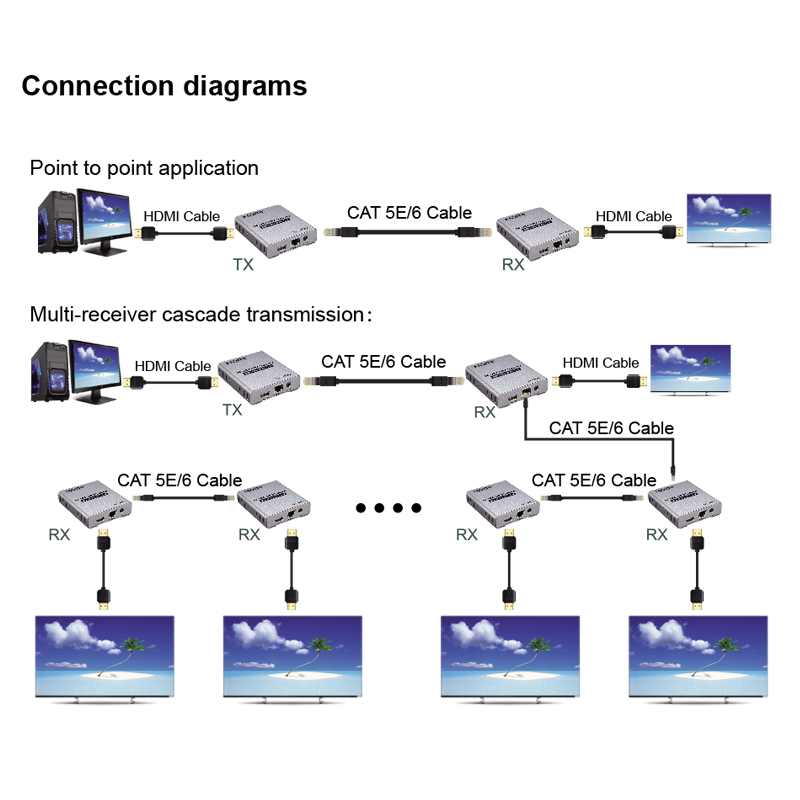

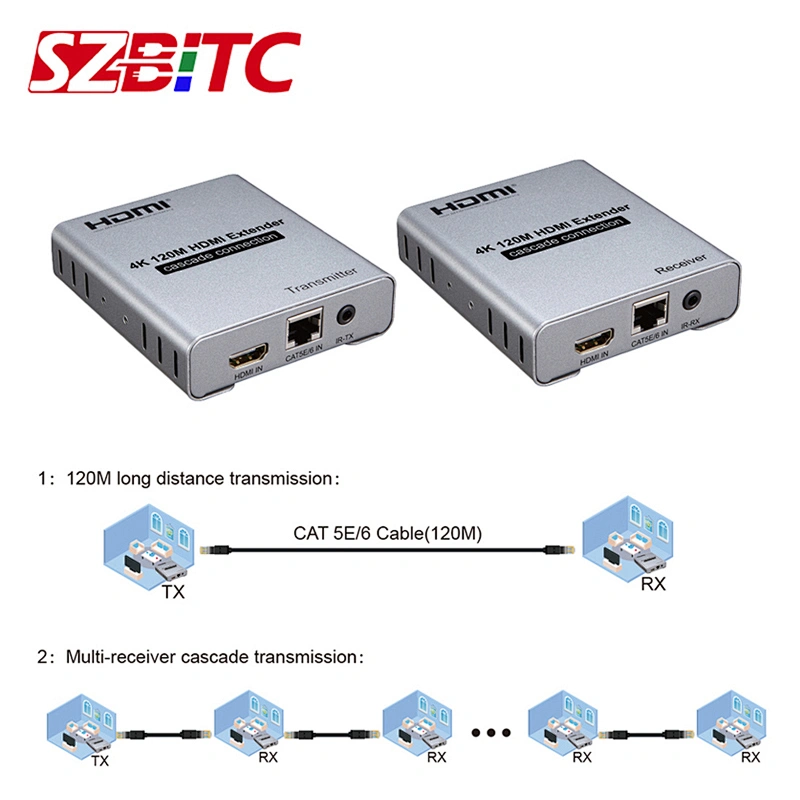

Length of CAT-5E/CAT-6 cable between Rx and TX up to 120 meters
Input 4K/1080p/720p/576p/576i/480p/480i
Support audio format DTS/Dolby/LPCM
Output 1080p/720p/576p/576i/480p/480i
Max bandwidth 340MHz
Max baud rate 3.4x3Gbps
Video signal 0.5~1.5Volts p-p
Output DDC signal 5Volts p-p (TTL)
Input cable distance ≤15m AWG26 standard cable
Output cable distance ≤15m AWG26 standard cable
TX Max working current 350mA
RX Max working current 200mA
Power adapter format Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +55℃)
Operating Humidity range 5% to 90%RH (No Condensation)
