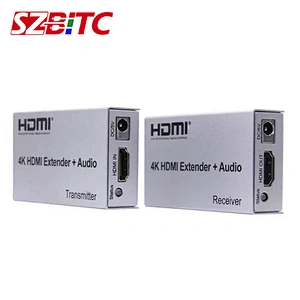

INTRODUCTION
The Extender uses single cat5e or cat6(recommended) cables instead of INPUT to transmit high definition signal up to 100 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
FEATURES
1: Support UHD INPUT.
2: Support 100m long distance transmission
3: Low power consumption, low temperature and high safety.
4: Support 3D video format
5: Both the TX and RX support 3.5MM left and right audio output
6: Support IR control
7. Length of CAT5e/CAT6 cable between Rx and TX Up to 100 meters
8. Input 4k/1080p/720p/576p/576i/480p/480i
9. Output 4k/1080p/1080i/720p/576p/576i/480p/480i
10. Max bandwidth 340MHz
11. Max baud rate 3x3.4Gbps
12. Input video signal 0.5~1.5Volts p-p
13. Output DDC signal 5Volts p-p (TTL)
14. Input cable distance ≤15m AWG26 HDMI standard cable
15. Output cable distance ≤15m AWG26 HDMI standard cable
16. TX Max working current 350mA
17. RX Max working current 200mA
18. Power adapter format Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
19. Operating Temperature range (-15 to +55℃)
20. Operating Humidity range 5 to 90%RH (No Condensation)
21. Dimension (L x W x H) 82x45x18 (mm)
22. TX Weight 100g
23. RX Weight 120g

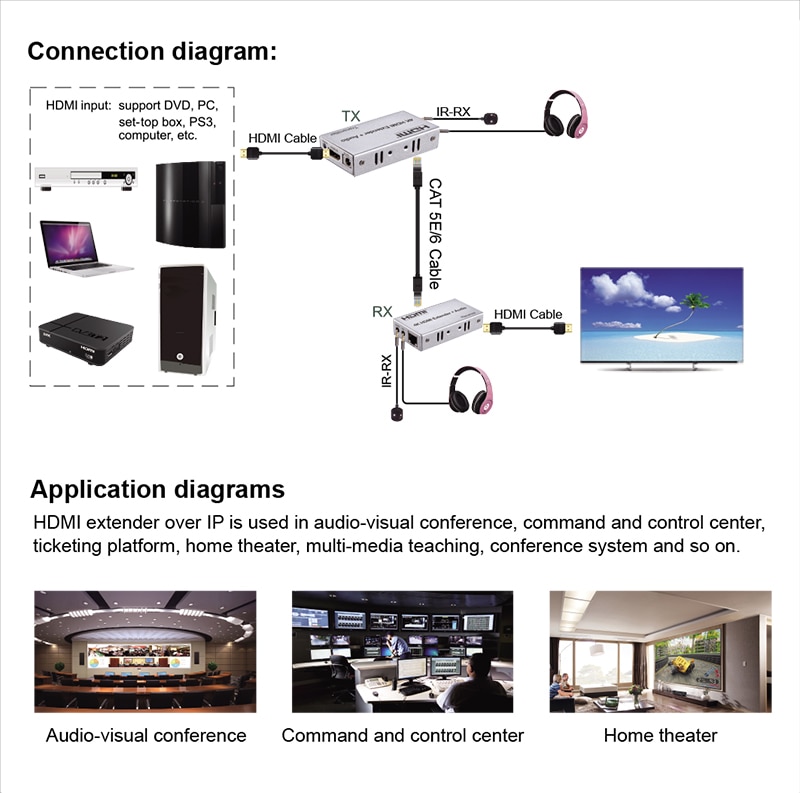

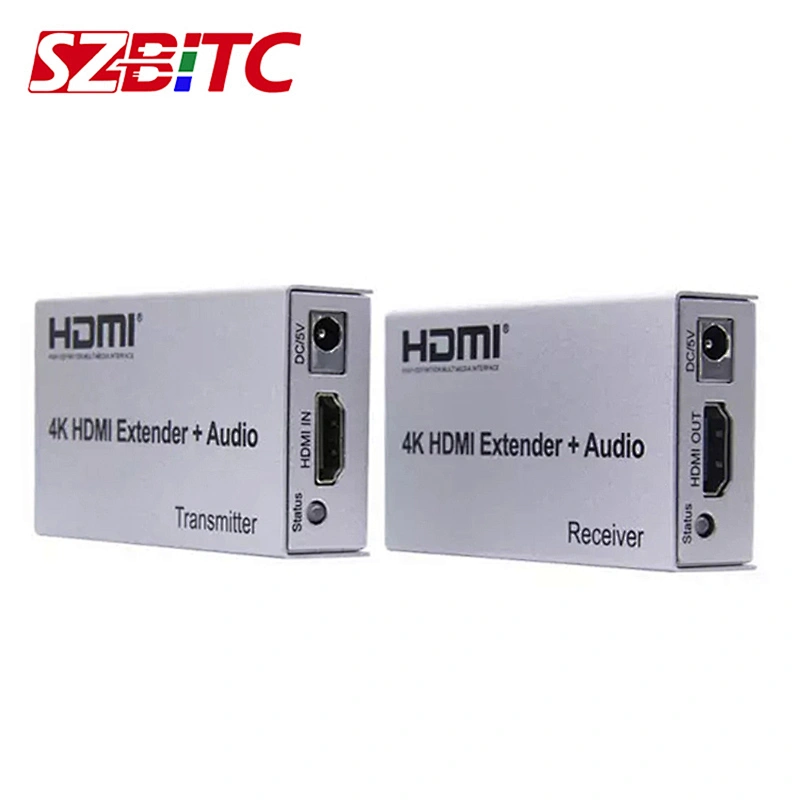

Operating and Connecting：
1.Connect one cable between source device and TX Extender, the max cable distance is 15 meters
2.Connect one cable between display device and RX Extender, the max cable distance is 15 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of cables between.TX and RX Extender, the max cable distance is 100 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light.TX LED indicator light: When there is no signal input, it turns blue;When there is signal input, it turns red.RX LED indicator light: When there is no signal input, it turns blue;When there is signal input, it turns red.

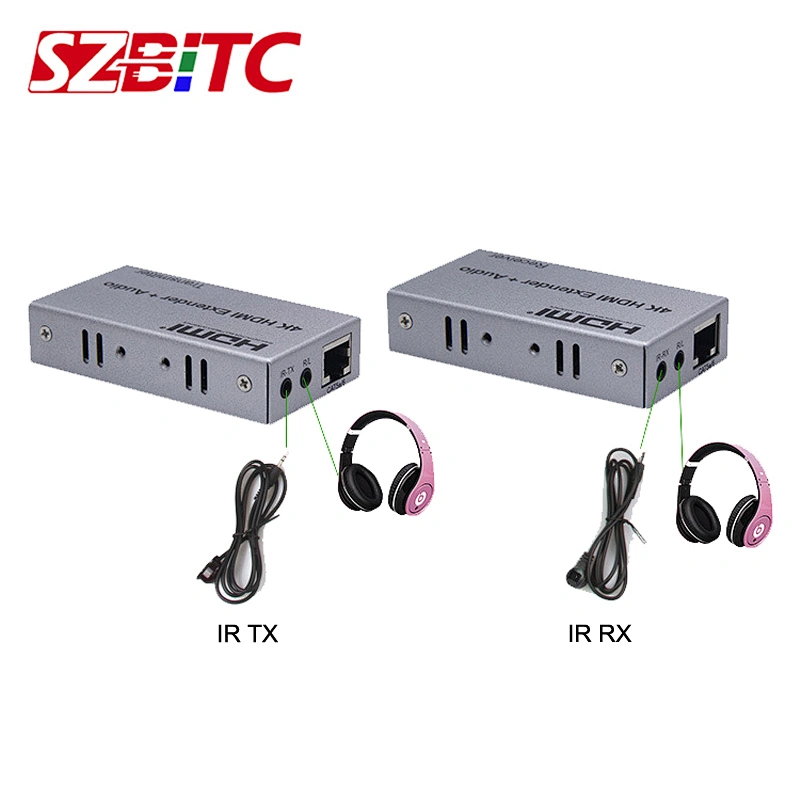

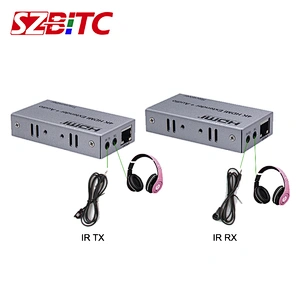

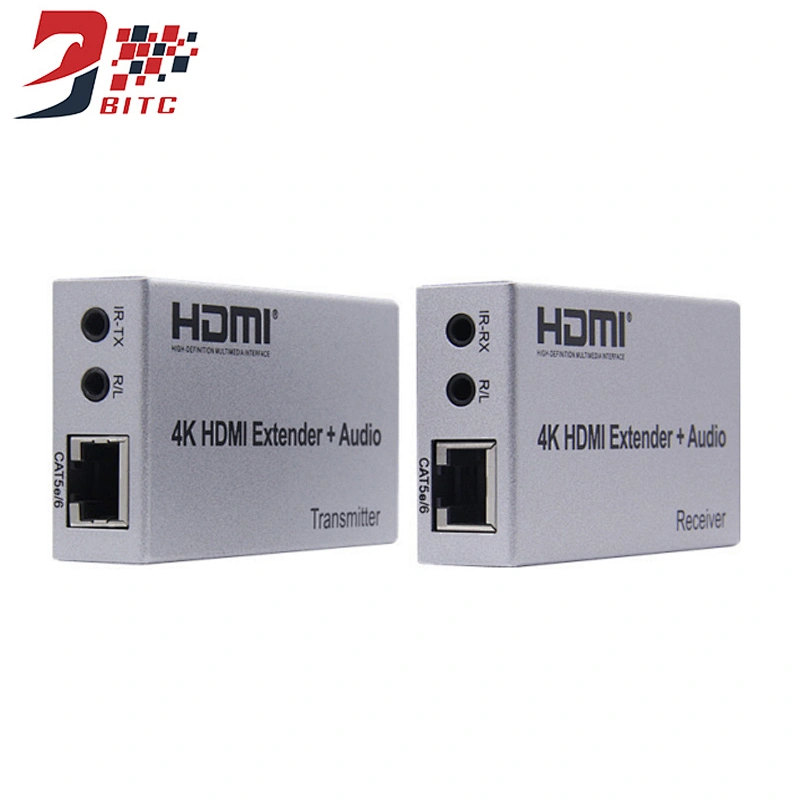

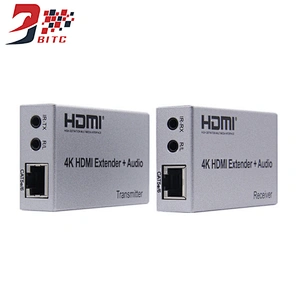

6.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the receiver and transmitter respectively.（Just connect when you need it）.
The Package includes:
1. TX Extender x 1pcs
RX Extender x 1 pcs
2. DC 5V Power adapter x 2pcs
3. User Manual
