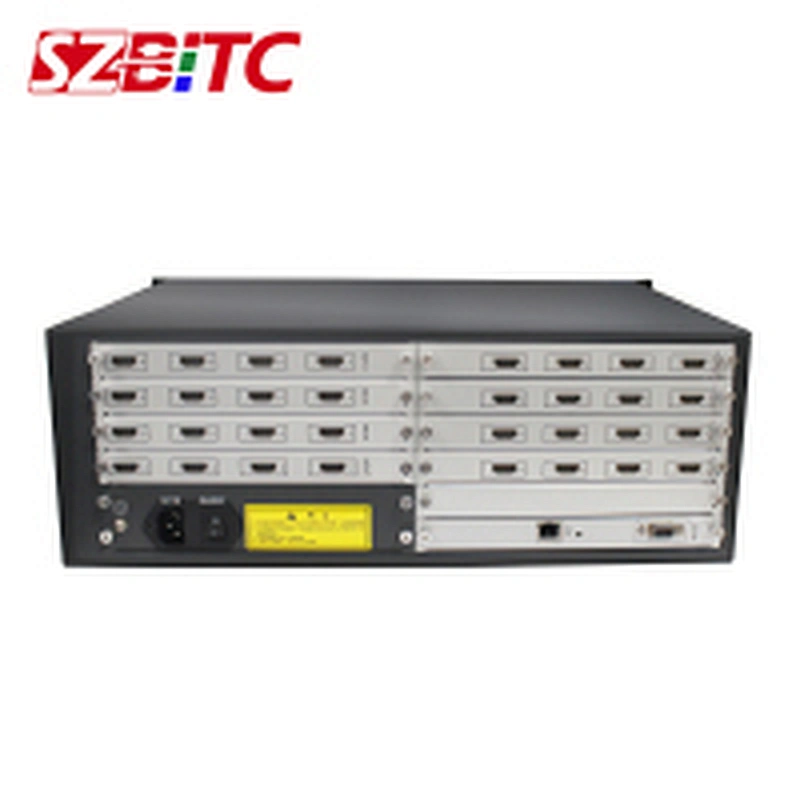

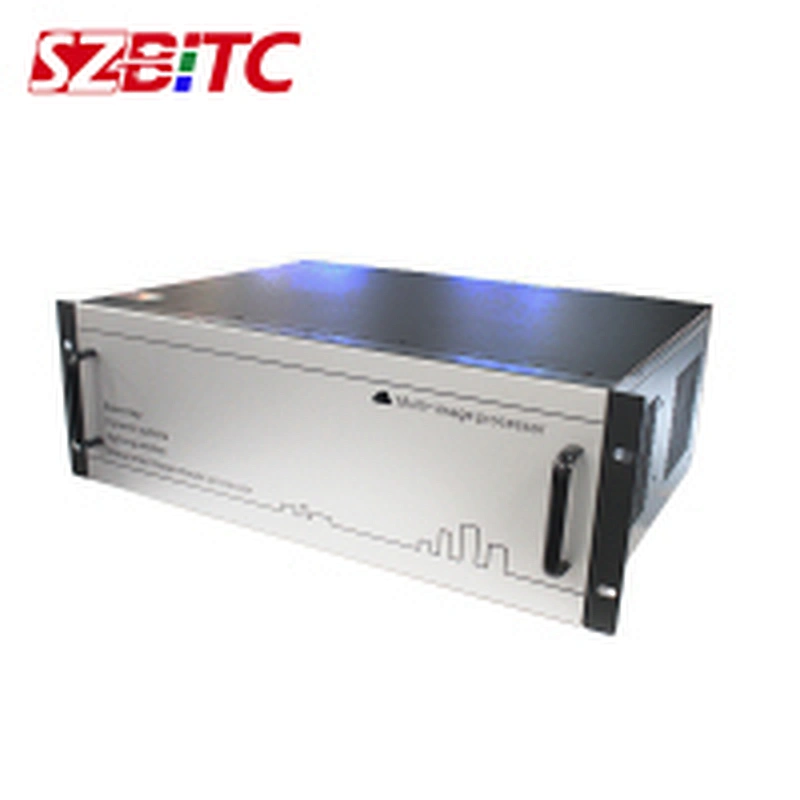

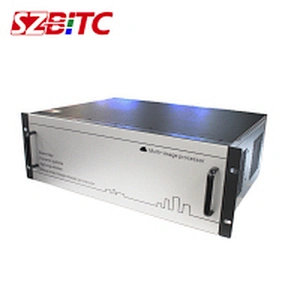

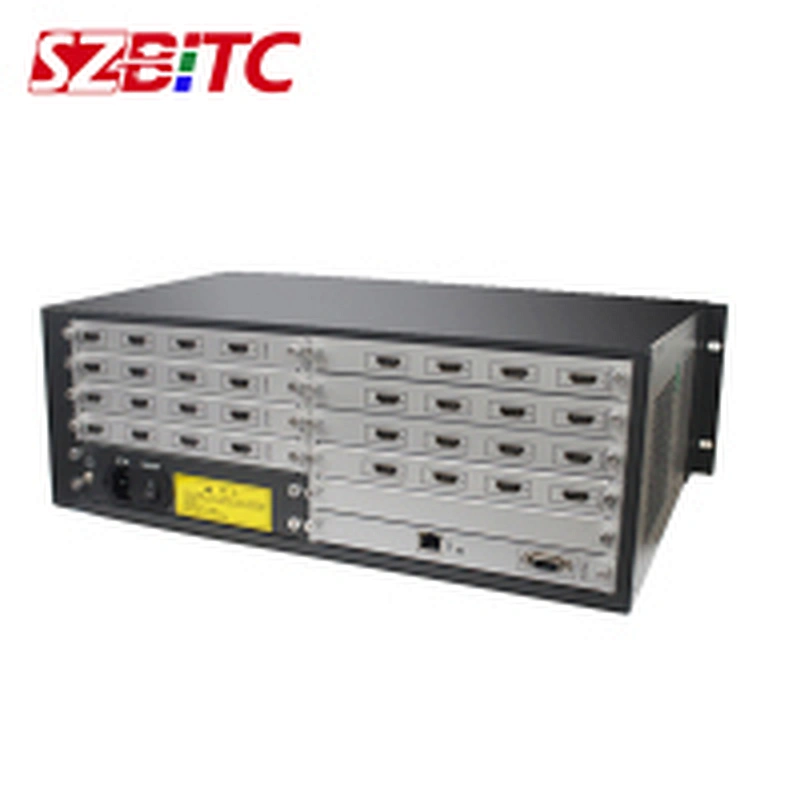

MA2000 Series Image Splicing Processor is a widely applied high-tech product in the field of image and video display. MA2000 Series Image Mosaic Processor is capable of processing a large number of images and videos, switching video and seamless connection with simple controlling, supporting for multiple platforms and excellent compatibility, basing on ARM + FPGA infrastructure and video processing algorithms of proprietary intellectual property rights. On the basis of meeting the basic functions, MA2000 Series can extend the IP decoding Service CARD easily, Pre-monitor and Echo Service CARD, multimedia screen Service CARD with the docking station. By this means, MA2000 Series meet the expansion requirements and improve the flexibility of the system greatly.
Product Performance:
1.Average 6 Seconds start time and start and use.
2.Linux system, system stability, low power consumption, support 7*24 hours longtime and stable operation
3.Embedded database, support a variety of plans
4.Modular plugged card design, Service CARD is plug-in card, very convenient for daily use and maintenance
5.Input interface supports HDMI/VGA/DVI/BNC/SDI and output interface supports HDMI/DVI
6.Support hardware reset
7.A single signal can be tiled displayed on any of M×N(>0) units
8.Support input signals to arbitrarily mosaic, window and roam, support layers overlay, single screen supports two image layers
9.Intelligent scaling technology, image scaling using intelligent multi-phase filtering algorithm, according to the characteristics of the image automatically select the optimal filtering coefficient, image close to the order of magnitude; infinite scaling effect, more detail, non-jagged edge and good sharpness.
10.Support the LED scrolling captioning function. The LED captioning needs to occupy one layer.
11.Unified management of multi-platform client, automatic detection of input and output signals and Service CARD
12.Single window supports maximum 36 screen segmentation with IP decoding Service CARD.
13.IP stream decodes in real time, which supports H.264/H.265 decoding, supports ONVIF, RTSP and other network streaming media protocol, and is compatible with the main brand network camera (IPC), NVR, video streaming media server.
14.A single network port supports decoding of maximum of 72-channel D1/32 channel 720P/18 channel 1080P/4 channel 4K.
15.Support power recovery function and scene memory function
16.Support pre-monitor and echo function, support multiple consoles to view different input videos
