Introduction:

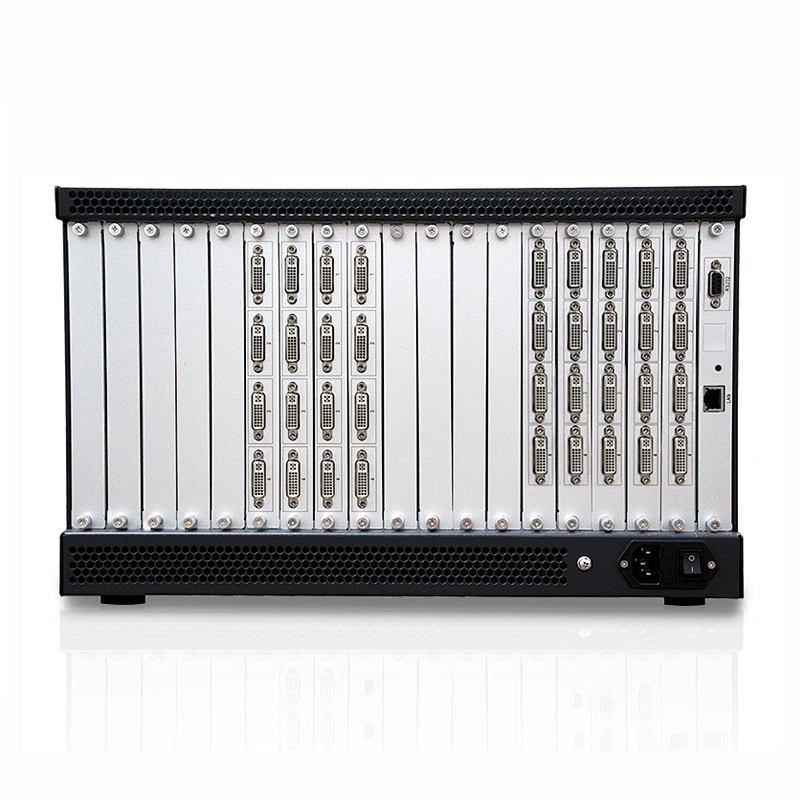

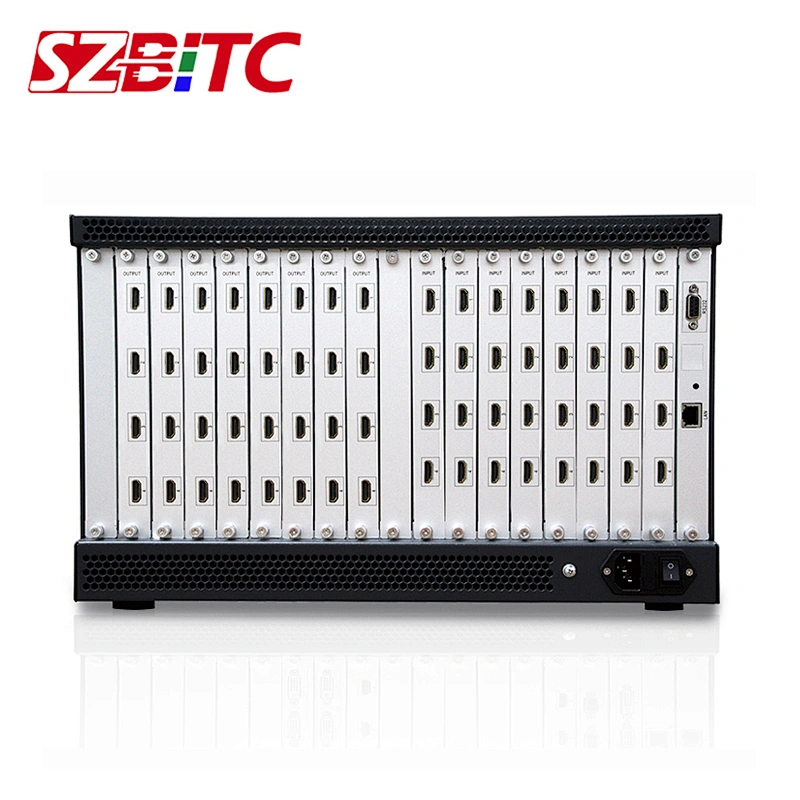

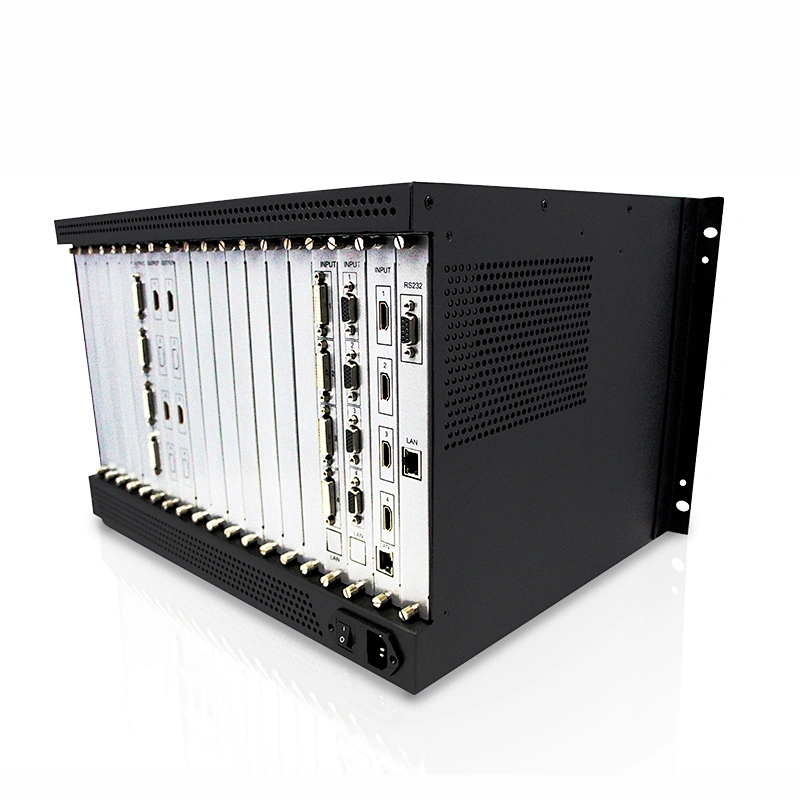

MA2000 Series Image Splicing Processor is a widely applied high-tech product in the field of image and video display. MA2000 Series Image Mosaic Processor is capable of processing a large number of images and videos, switching video and seamless connection with simple controlling, supporting for multiple platforms and excellent compatibility, basing on ARM + FPGA infrastructure and video processing algorithms of proprietary intellectual property rights. On the basis of meeting the basic functions, MA2000 Series can extend the IP decoding Service CARD easily, Pre-monitor and Echo Service CARD, multimedia screen Service CARD with the docking station. By this means, MA2000 Series meet the expansion requirements and improve the flexibility of the system greatly.
Product Performance:
1.Average 6 Seconds start time and start and use.
2.Linux system, system stability, low power consumption, support 7*24 hours longtime and stable operation
3.Embedded database, support a variety of plans
4.Modular plugged card design, Service CARD is plug-in card, very convenient for daily use and maintenance
5.Input interface supports HDMI/VGA/DVI/BNC/SDI and output interface supports HDMI/DVI
6.Support hardware reset
7.A single signal can be tiled displayed on any of M×N(>0) units
8.Support input signals to arbitrarily mosaic, window and roam, support layers overlay, single screen supports two image layers
9.Intelligent scaling technology, image scaling using intelligent multi-phase filtering algorithm, according to the characteristics of the image automatically select the optimal filtering coefficient, image close to the order of magnitude; infinite scaling effect, more detail, non-jagged edge and good sharpness.
10.Support the LED scrolling captioning function. The LED captioning needs to occupy one layer.
11.Unified management of multi-platform client, automatic detection of input and output signals and Service CARD
12.Single window supports maximum 36 screen segmentation with IP decoding Service CARD.
13.IP stream decodes in real time, which supports H.264/H.265 decoding, supports ONVIF, RTSP and other network streaming media protocol, and is compatible with the main brand network camera (IPC), NVR, video streaming media server.
14.A single network port supports decoding of maximum of 72-channel D1/32 channel 720P/18 channel 1080P/4 channel 4K.
15.Support power recovery function and scene memory function
16.Support pre-monitor and echo function, support multiple consoles to view different input videos
TYPE | Chassis Model | 3U Std | 6U Std | 12U Std | ||
Case Size | Input Slot | 4 | 9 | 18 | ||
Output Slot | 5 | 9 | 18 | |||
Master Slot | 1 | 1 | 1 | |||
Maximum Input/Output | 16 Input 20 Output | 36 Input 36 Output | 72 Input 72 Output | |||
Network Control | Standard | |||||
RS232 Communication | Standard | |||||
Tablet Control | Support for Android | |||||
PC Client Control | Standard Windows graphical splicing control software easy to use | |||||
Video Input (optional) | Input Service CARD | Support 4 channels HDMI/DVI/SDI signal input, HDMI Type A interface/DVI-I interface, support HDC，BNC，etc., with maximum resolution 1920*1080@60Hz | ||||
Video Output (optional) | Output Service CARD | 2-channel output of single-board, single-screen supports for 4 layers of window overlay, DMI Type A interface (female)/DVI-I interface (female), support HDMI1.3 and digital signal protection protocol HDCP, etc., with maximum resolution 1920*1080@60Hz | ||||
Pre-monitor and Echo CARD (optional) | Pre-monitor and Echo CARD | Single card supports 8 channels of pre-monitoring and echo at the same time, and all input signal sources can be pre-monitored by switching. | ||||
IP Video Decoding Card(optional) | Network Camera Video Stream Input | Support 1 channel 1000M input, single internet access supports 18 channel 1080P, 32 channel 720P, 72 channel D1 video decoding, support H.264 and H.265 video compression format | ||||
Basic Parameters | Matrix Switch | With matrix function, the processor can switch any input signal to any output. | ||||
Images Splicing | Support splicing and combination, support screen window, roaming and zooming, etc. | |||||
Image Segmentation | IPC network signal supports maximum 36 segmentation per window | |||||
Map Mode | Support ultrahigh resolution overlay display of static image. When the bottom image is open, the lowest window channel is occupied by default. Base map display supports three modes: single screen display for all screens, splicing display for all screens and splicing display for parts of contiguous area | |||||
HD Vector Subtitles (optional) | Ultra HD point to point vector subtitles, support dynamic and static subtitle, and you can edit the display content, font, color and other parameters | |||||
No Black Field Real-Time Switch | Black field and flower screen do not occur when signal is switched | |||||
Automatic Detection of Input and Output Board | Real-time detection of all inserted boards in the current processor | |||||
Automatic Detection of Input Signal | Real-time detection of input signal access in each channel, which is indicated in input board and client software | |||||
Power | 100W power adapter | 200W power adapter | 350W power adapter | |||
Operation temperature/humidity | Operation temperature: -10°C ~ 50°C / relative humidity: 5°C ~ 95°C without condensation | |||||
Size | Width x Depth x Height (mm) 437x428x133.5 | Width x Depth x Height (mm) 437x428x311.5 | Width x Depth x Height (mm) 437x428x623 | |||
Weight | <=20KG(full) | <=35KG(full) | <=70KG(full) | |||
