1. Introduction

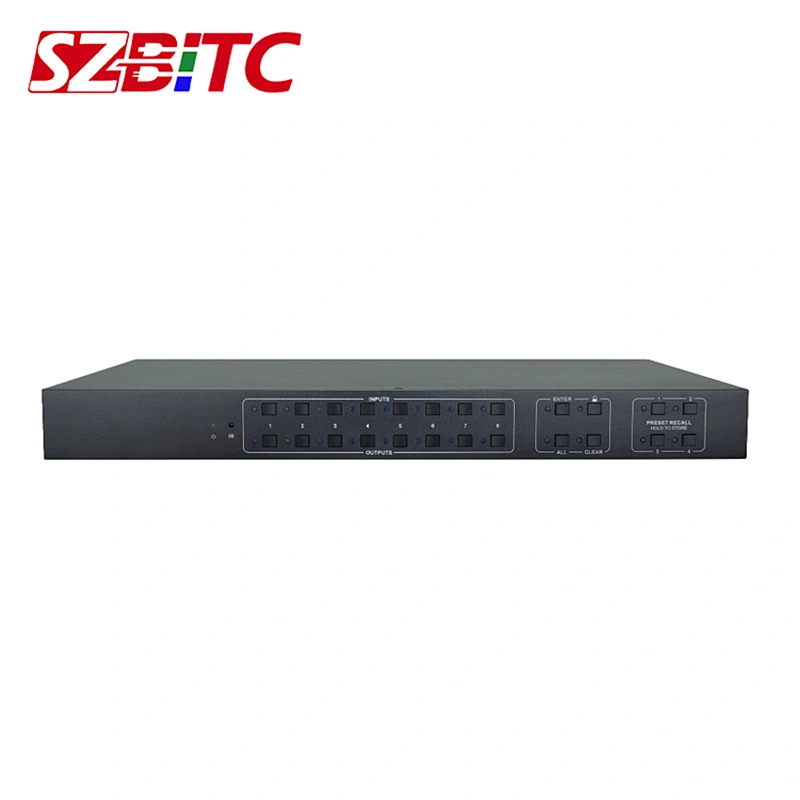

The BX0808A is a professional 8x8 4k Matrix Switcher with Audio Matrix. It includes 8 inputs, 8 outputs and the last four outputs with down-scaling function, which is designed for switching four compliant signals. It also features 8 SPDIF and 8 analog audio outputs for audio matrix.
The matrix switcher features comprehensive EDID management and advanced HDCP handing to ensure maximum functionality with a wide range of video sources.
The matrix switcher not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
1.1 Features
8x8 4K Matrix Switcher.
Supports 4K/60HZ 4:4:4, HDR, HDCP2.3 compliant.
Audio Matrix, audio out can be de-embedded from arbitrary input or output.
Individual volume adjustment on each L+R output.
Supports 4K to 1080p down-scaling up to 4 outputs.
Out provides 2.5W to power Active Optical Cable (AOC).
Output support up to 5V500mA for AOC cable

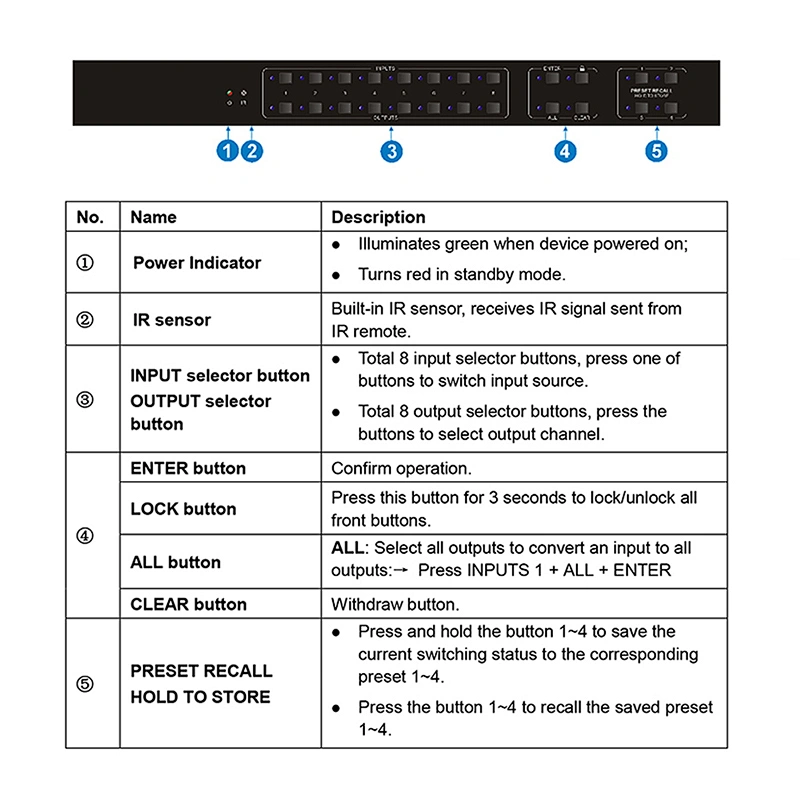

Controllable by front panel, IR, RS232 and TCP/IP.
1.2 Package List
1 x BX0808A
6 x Screws
1 x RS232 cable (3-pin to DB9)
1 x IR remote
1 x User manual
2 x Mounting ears
4 x Plastic cushions
1 x IR receiver
1 x Power adaptor(DC 24V 2.71A)
Note: Please contact your distributor immediately if any damage or defect in the components is found.
2. Specification
Video |
Video Input | 8 |
Input Connector | 8 |
Input Resolution | Up to 4K@60Hz 4:4:4, HDR |
Video Output | 8 |
Output Connector | 8 |
Output Resolution | Up to 4K@60Hz 4:4:4, HDR10 and Dolby Vision |
Output | Supports up to 5V500mA for AoC cable |
Audio Signal | LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X™, and DTS-HD® Master Audio™ pass-through. |
Digital Audio Output |
Output | (8) Digital SPDIF audio |
Output Connector | (8) Toslink connector |
Digital SPDIF Audio Format | Supports PCM, Dolby Digital, DTS, DTS-HD |
Frequency Response | 20Hz – 20KHz,±1dB |
Max Output Level | ±0.05dBFS |
THD+N | < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level) |
SNR | > 90dB, 20Hz-20KHz bandwidth |
Crosstalk Isolation | < -70 dB, 10 kHz sine at 0 dBFS level (or max level before clipping) |
Noise | -90dB |
Analog Audio Output |
Output | (8) Analog L/R Audio |
Output Connector | (8) L&R (RCA) |
Digital SPDIF Audio Format | PCM 2CH |
Frequency Response | 20 Hz to 20 kHz, ±1dB |
Max Output Level | 2.0 Vrms ± 0.5 dB. 2 V = 16 dB headroom above -10 dBV (316 mV) nominal consumer line level signal |
THD+N | < 0.05%, 20 Hz – 20 kHz bandwidth, 1 kHz sine at 0 dBFS level (or max level) |
SNR | > 80dB, 20Hz-20 kHz bandwidth |
Crosstalk Isolation | < -80 dB, 10 kHz sine at 0 dBFS level (or max level before clipping) |
L-R level deviation | < 0.05 dB, 1 kHz sine at 0 dBFS level (or max level before clipping) |
Output load capability | 1k ohm and higher (supports 10x paralleled 10k ohm loads) |
Noise | -80dB |
Control |
Control port | (1) FIRWARE, (1) IR IN, (1) RS232, (1) TCP/IP, (1) IR EYE |
Control Connector | (1) USB-A, (1) 3.5mm jacks, (1) 3-pin terminal block, (1) RJ45 |
General |
Transmission Distance | 4K/60Hz/444 5m,4K/60Hz/420 10m,1080P 15m |
Bandwidth | 18Gbps |
Operation Temperature | -5℃ ~ +55℃ |
Storage Temperature | -25℃ ~ +70℃ |
Relative Humidity | 10% ~ 90% |
External Power Supply | Input: AC 100V~240V, 50/60Hz; Output : 24V DC 2.71A |
Power Consumption | 24W |
Dimension (W*H*D) | 436.4mm*44mm*236mm |
Net Weight | 3kg |
