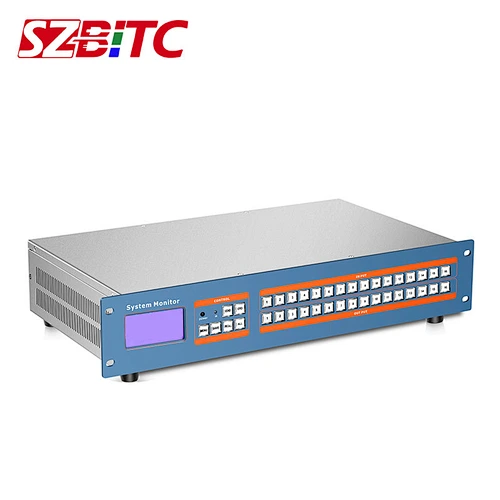

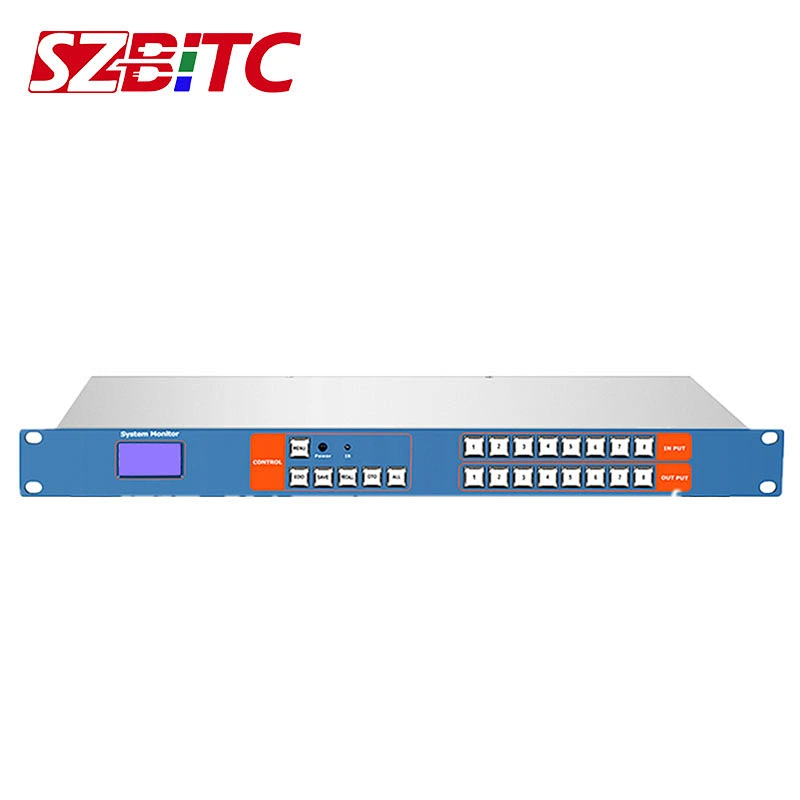

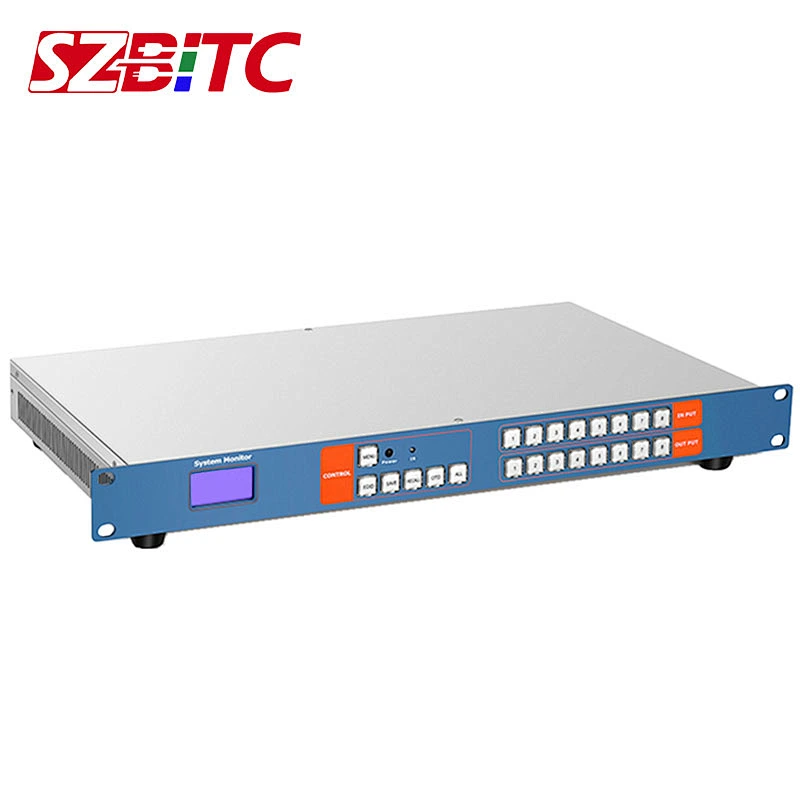

Product Introduction

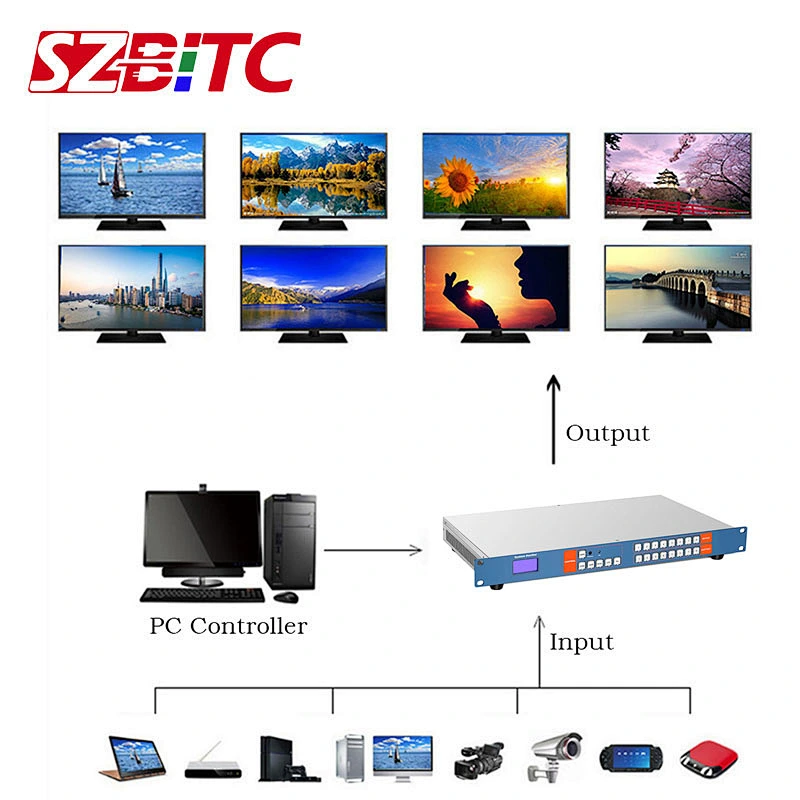

The Matrix support UHD Input,EDID management;resolution up to 4K@30HZ,1080@120HZ. Support.Audio-video synchronous switching,suitable for conference room, command center, multimedia room and other application scenarios.
Features
1. The whole hardware architecture has no CPU and operating system;
2. All the board modular design, support hot-swappable, stable and reliable system;
3. Adopt American 17GHz high bandwidth chip;
4. Each signal supports HDCP, Blu-ray, 3D;
5. Support signal timing reorganization, CEC, 36-bit true color technology;
6. Support the fast closure of the channel;
7. Support for HDMI 1.4a protocol version support: 4K x 2kx30Hz, 1080p, 120Hz, 1080p 3D, 60Hz;

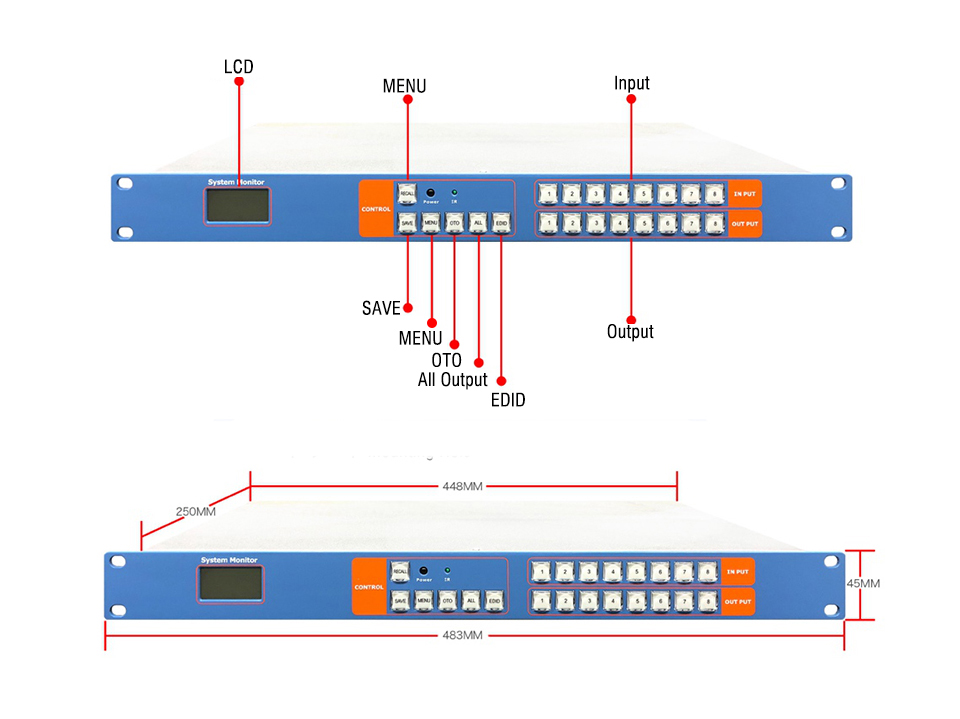

8. Visual keystroke, through the keystroke LED can realize input and output channel status visualization;
9. Radio and television level switching chip, image switching can be completed on a single chip, higher integration;

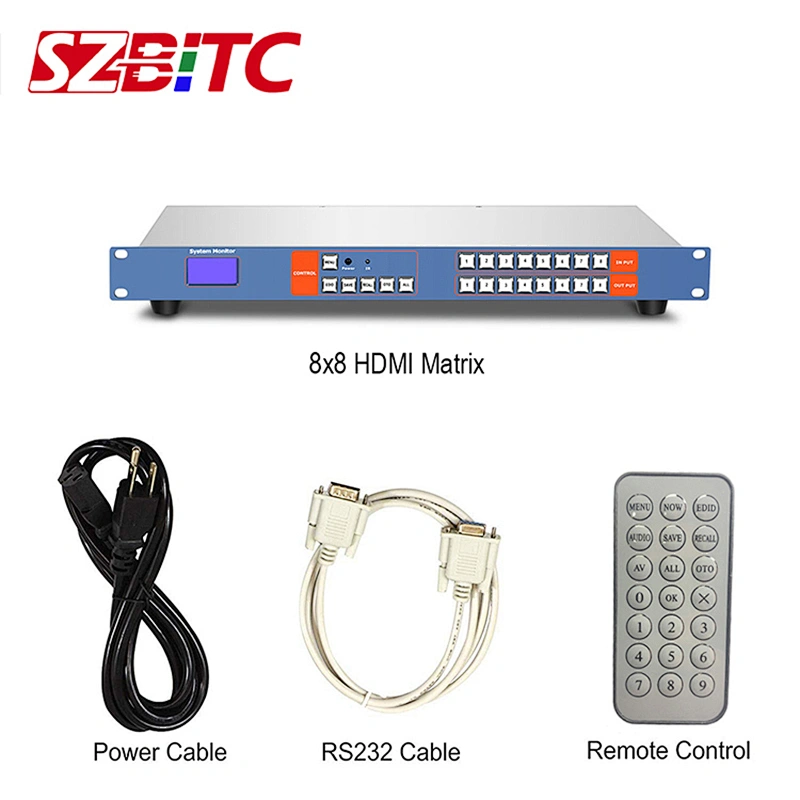

10. Support button, infrared remote control, RS232 serial port, TCP/IP and other control methods;
11. Support EDID erasable and EDID adaptive function, better adapt to a variety of field display equipment, improve compatibility;
12. Long-line drive capability: input with automatic equalization, effectively reduce the deterministic jitter caused by line transmission;
13. The output has a pre-weighting function so that the receiving end can still receive the signal after long-term transmission and the output distance can be up to 30 meters.
14. The input supports the receiving delay, which effectively compensates for the time when the differential pairs are not equal to each other.
15. Power loss memory field protection function.
16. HDMI video matrix adopts external power supply, aviation spiral power supply interface to protect the stability of the power supply;
