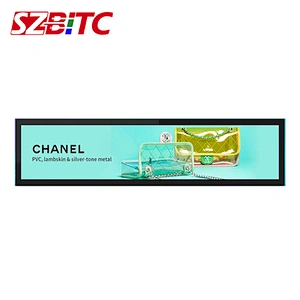

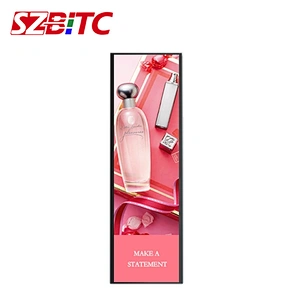

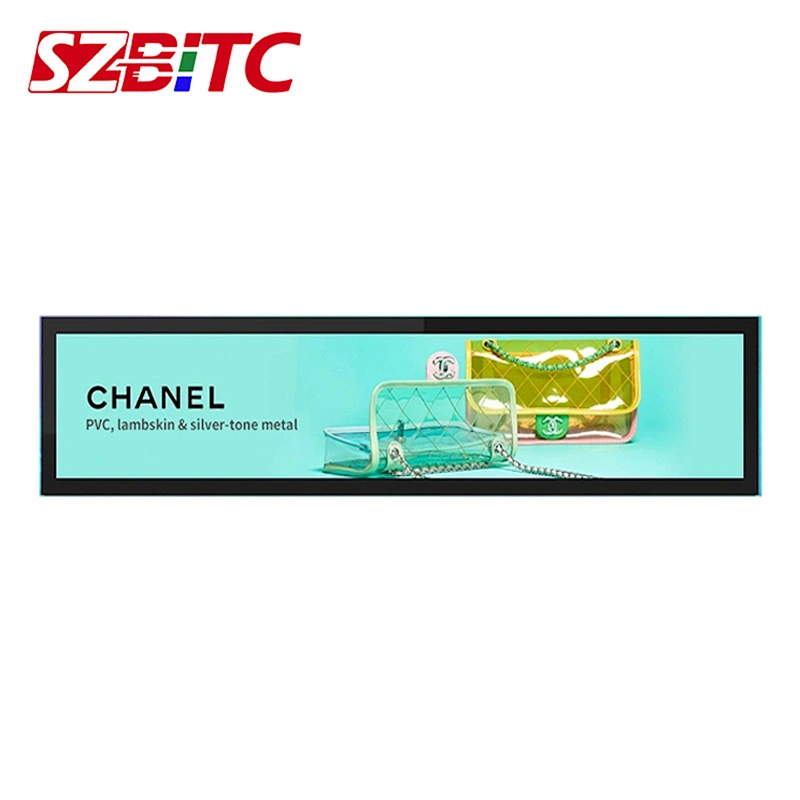

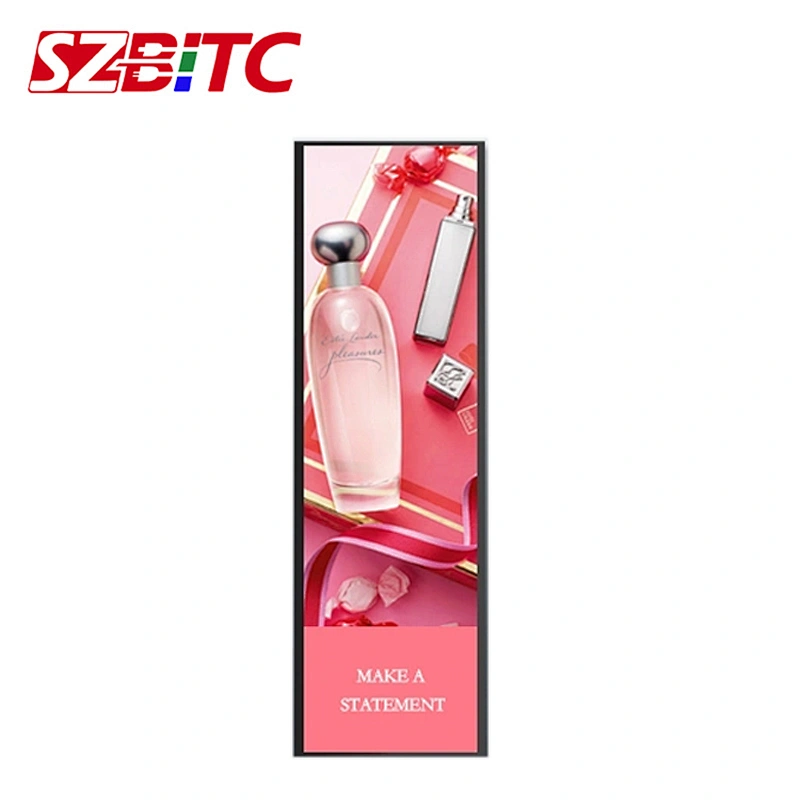

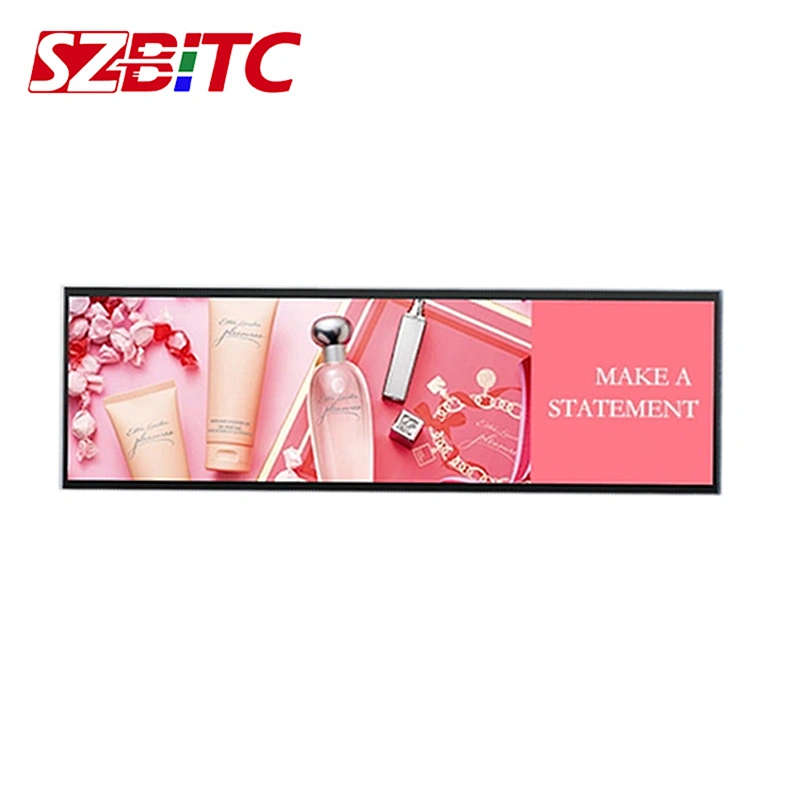

1.Function Description:

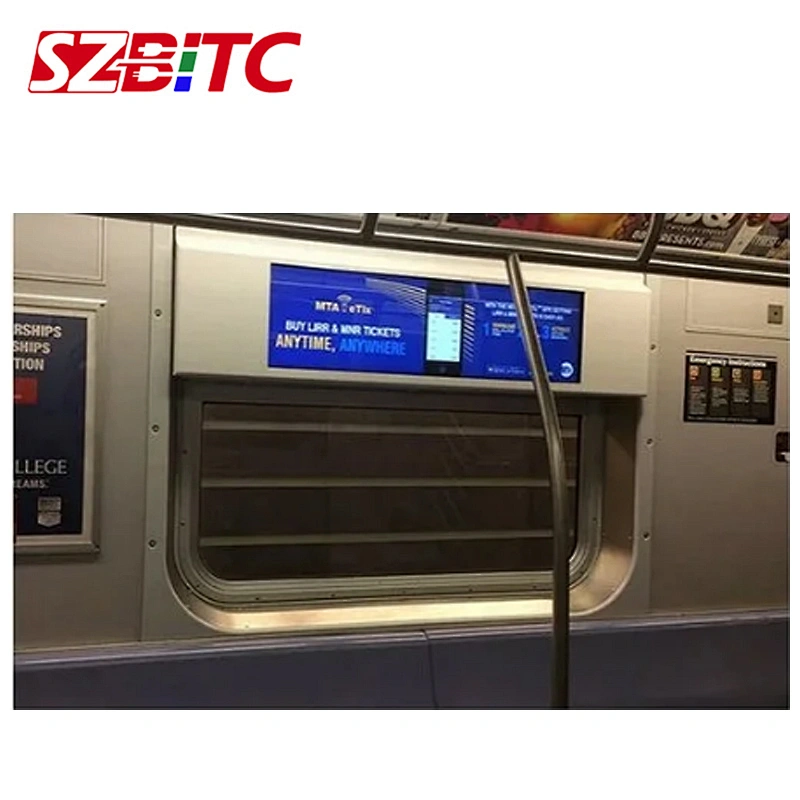

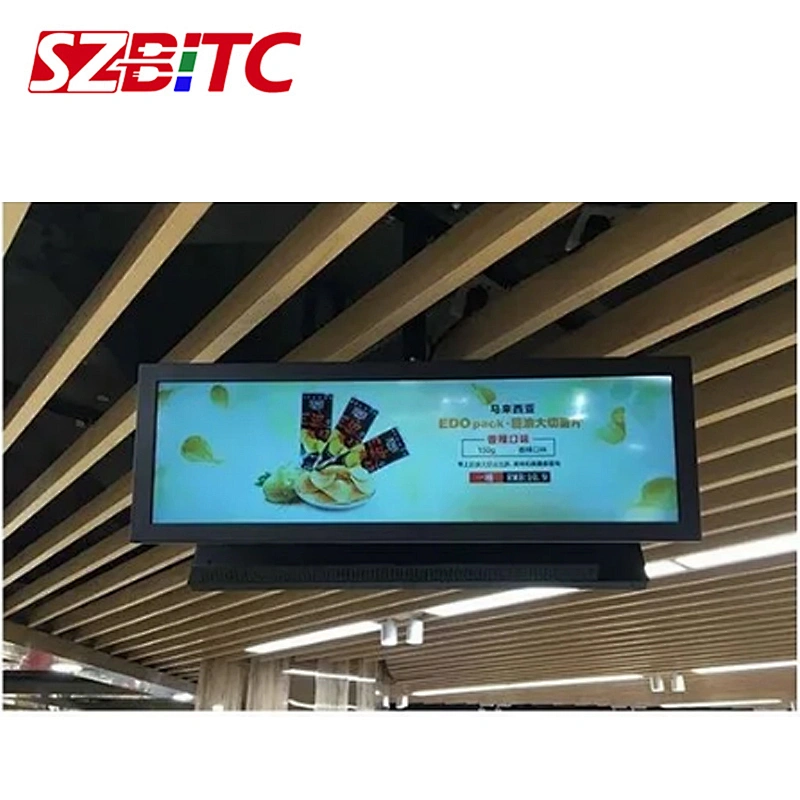

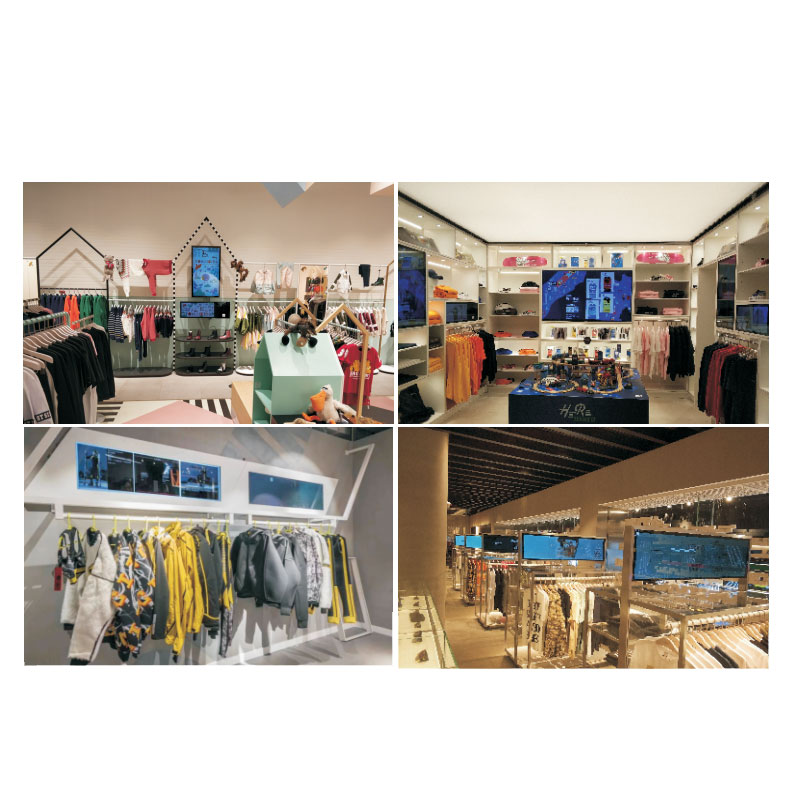

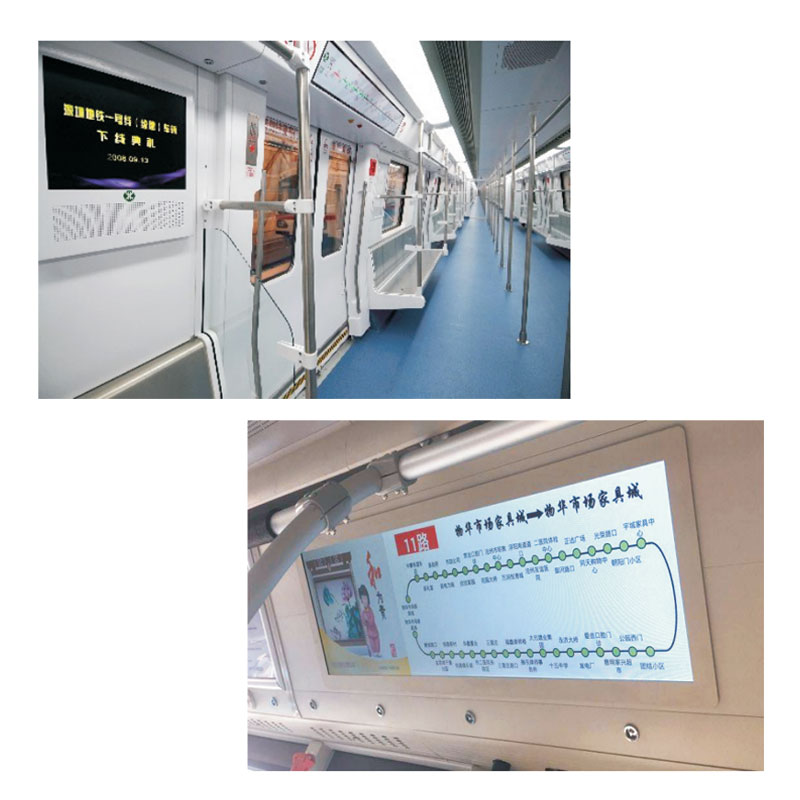

This series of products have cabinet appearance, whole body is hardware cold-rolled steel spraying plate , part of heat dissipation aluminium alloy material, LCD panel using imported high-definition LCD panel, clear picture . It can be widely used in building lobby, monopoly store, bank, transportation, hospital, station, hotel, subway, shopping mall, government building and other different occasions. It is mainly used for multimedia information publicity, POP slide picture advertisement, text, audio and video media broadcasting. It is a high-end digital sign commercial product.
2.Specification:
| Display Parameter | |
| Panel size | 36.5 Inches |
| Active area | 885mm(L)*278mm(W) |
| Max resolution | 1920*228 |
| Support colors | 16.7M |
| Pixel pitch | 0.46125*0.46125mm |
| Brightness nits | 500 cd/m2( brightness can be customized) |
| Contrast ratio | 3500:1 |
| Viewing angle | R/L/U/D 89/89/89/89 |
| Response time | < 8ms |
| Field rate | 60HZ |
| Theory lifetime | 50000H |
| Power consumption(kw/h) | < 68W |
| Appearance Basic Parameter | |
| Body color | White/Black (Can be customized) |
| Body size | 930mmX335mmX58mm |
| Net Weight | 12KG |
3.Parameter
| Handware Parameter | ||
| CPU | A64 quad core Cortex-A9 quan core GPU Mali-400 main frequency 1.2G | |
| Cache | 1G DDR3 | |
| Storage | 8G FLASH | |
| Decoding resolution | Support 1080P HD vide | |
| Interface | Extended SD Card slot *1 RJ45 interface *1 HDMI HD output*1 USB interface*2 | |
| Osd language | Chinese/ English | |
| FILE FORMAT | Video | RMVB,FLV,MPEG1/2/4,AVI,DIVX,XDIV,WMV9,H.264,VC-1, MOV,MKV, MP4,TS,M2T,VOB |
| Picture | BMP/PNG/GIF/JPEG | |
| Music | MP3,WMA,WAV,EAAC+, MP2 dec,Vorbis(Ogg),AC3,FLAC(Lossless Audio),APE(Lossless Audio),BSAC; | |
| Speaker | 2*5W (8Ω) | |
| Play mode | 1,The main frequency is 1.6G RK3188, quad cores, and the system platform is based on Android version 4.4 or above. It can replace entertainment function of desktop PC , and the platform has the advantages of standardization and openness. 2. Support free switching of HDMI/VGA boot output; 3. Input function: support resistance, capacitance, infrared, acoustic, nanometer and other touch screen input; support remote control input, support USB mouse/ keyboard input; 4. Supporting horizontal screen and vertical screen, 360 degree display mode; 5. Multi-storage media support function: can be supported SD card, USB disk, SATA hard disk peripheral storage; 6. Clock display: built-in clock IC, which can automatically update time information and automatically correct system time when connecting Network. 7. Timing switch: to save energy and prolong service life; after setting the switch time, the whole system will start automatically during the start-up period; 8. Strong network support: support cable/Wifi/3G (optional) access; 9. Multilingualism: support Chinese, English and most other national languages, TTF vector font support, No distortion display; 11. Supporting many kinds of B/S structure advertisement publishing software, based on the powerful backstage server management software, can set the parameters of the advertiser online, making the playlist online and sending it down, downloading the source of the server advertisement in realtime/timing, downloading and playing automatically; | |
| Control background software | N | |
| Other Function Parameter | |
| Touch | No Touch |
| WIFI | IEEE802.11B/g/n |
| 3G | N |
| Working Enviroment | |
| Working temperature: | 0ºC~40ºC |
| Storage temperature: | -20ºC~60ºC |
| Humidity: | <85% |
| Working voltage: | ~100V-260Vac 50Hz/60Hz |
