INTRODUCTION

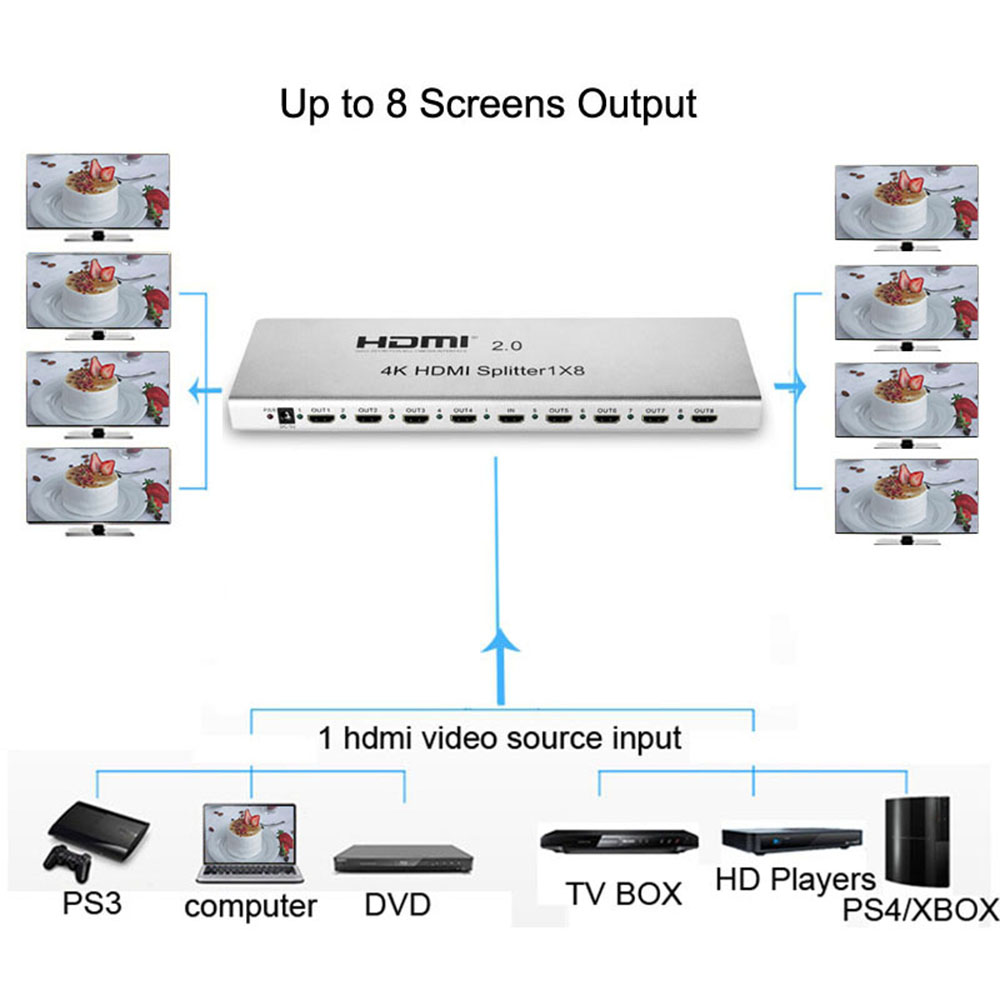

This 1x8 Splitter uses a single source,accessing to multiple sinks. It allows one device to be split easily to 8 compatible monitors or projectors. In addition,it can be placed at the end of a lcable to regenerate the signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.
This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source.
FEATURES
1.Support 4K SIGNAL
2.Support 3D video format
3.Support CEC
4.Support high resolution up to 3840X2160/60Hz
5.Support highest rate of 6 G and TMDS clock can be up to 600 MHz
6.Support 8/10/12 bit deep color
7.When the resolution is 1080p and below, input up to 8 meters,output to 8 meters.when the resolution is 4K, input up to 8 meters, output up to 8 meters.
8.Support one single source,accessing to multiple sinks, the source can be DVD player, A/V receiver, set top box and etc.
9.Built-in IR extension function
10.Remote control the source (via the IR-RX of repeater which splitter works with to receive the IR command)
11.Support serial port online upgrade
12.Support EDID management
13.5V/3A power adapter
