Introduction:

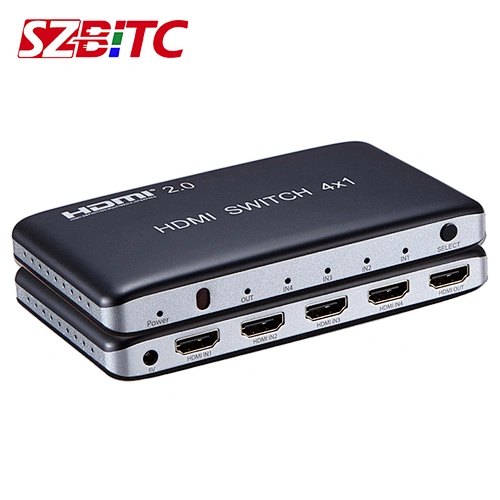

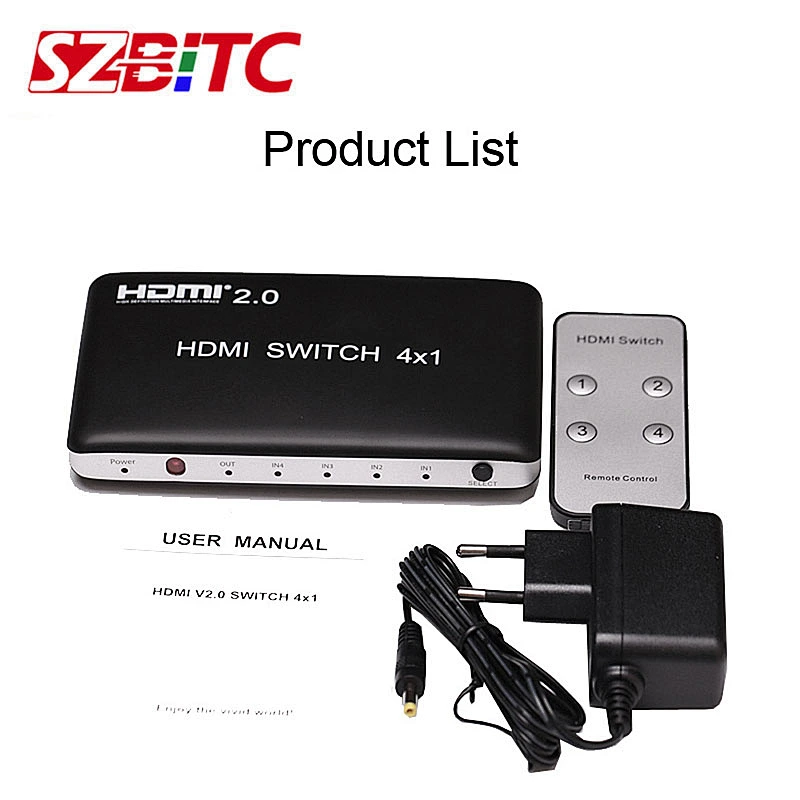

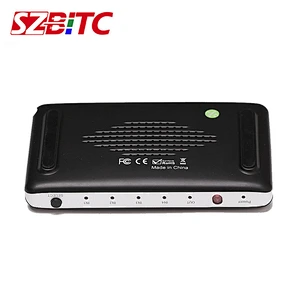

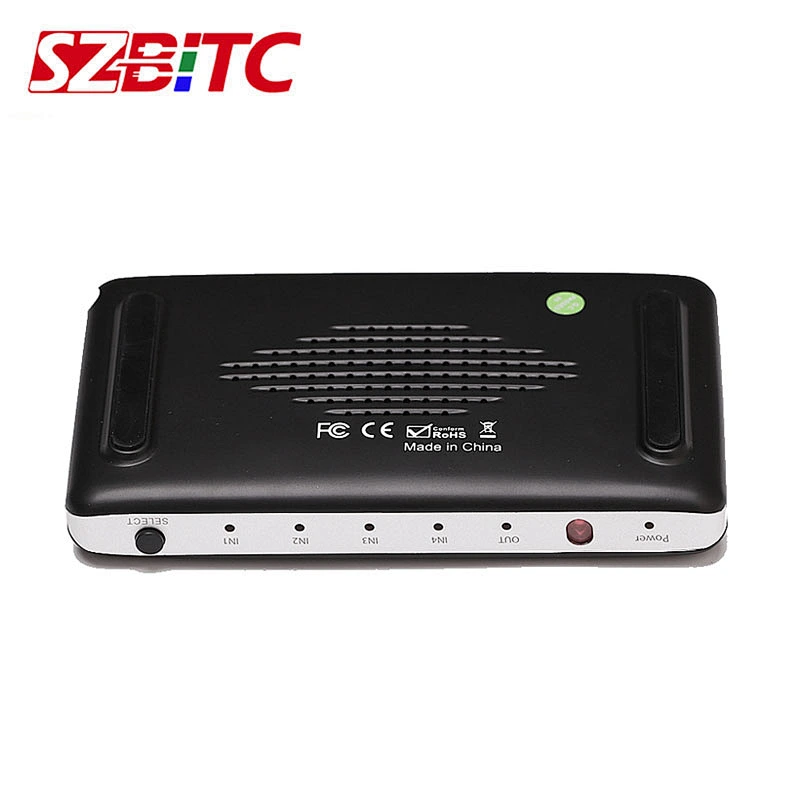

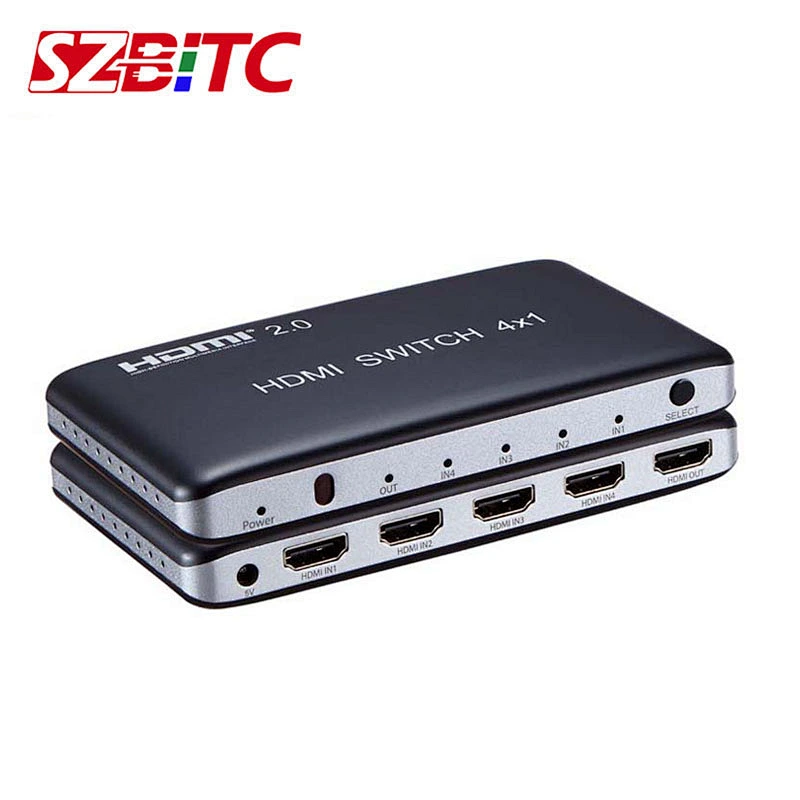

The 4x1 UHD switch allows 4 ports to be switched to a single display terminal via remote control or buttons on unit. The switcher can be placed at the end of a long cable to regenerate the UHD signal.The switcher can support all hd formats including 720p, 1080i, 1080p, 4K/30Hz，4K/60Hz multichannel audio.
Features:
1.Support 2.0VERSION
2.Support 3D.
3.Support highest video resolution 4K/60Hz.
4.Support 6Gbps data rate for tmds clock up to 600MHz
5.Support 24/30/36 bit deep color.
6.Supports auto switch of 4K input (priority of the last port in 4).
7.Support standard AWG26 cable, input up to 8 metres ,output up to 8 metres （4K/30Hz or lower）.
8.Support standard 2.0 cable, input up to 3 metres ,output up to 5 metres(4K/60Hz).

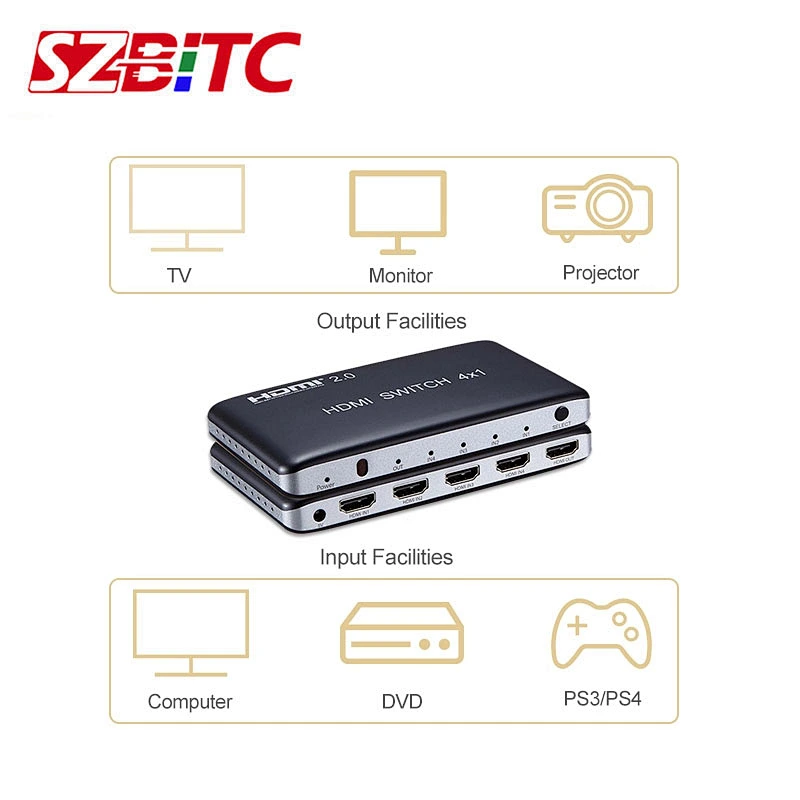

9.Support single and high definition display for multiple sources, such as DVD Players and Satellite Receivers, HD players, PS4, Set top Boxes.
10.Need DC5V/1A power supply.
